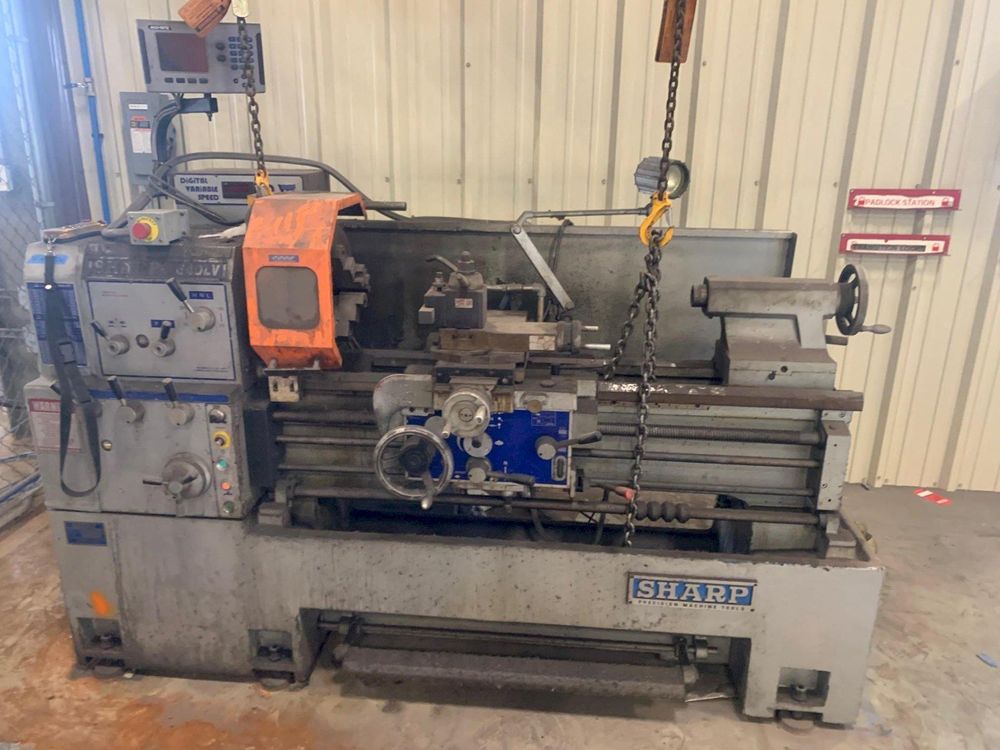

Sharp Engine Lathe 2000 RPM 1640LV

Swing Over Bed 16"
Swing Over Cross Slide 8.75"
Swing Over Gap 24.37"
Gap Width (In Front of Face Plate) 9.75"
Distance Between Centers 40"
Spindle Speed High 235-2000 RPM
Spindle Speed Low 20-170 RPM
Number of Spindle Speeds 12
Spindle Nose D1-8 Camlock
Spindle Bore 3.06"
Inch Threads 4-56 TPI, 36
Metric Threads 0.5-7 mm, 17
Diametral Pitch Threads 0.157-2.20", 36
Longitudinal Feeds 0.002-0.032 in/rev
Cross Feeds 0.0001-0.0094 in/rev
Leadscrew Pitch, Diameter 4 TPI, 1.37"
Cross Slide Travel 9.8"
Compound Travel 4.9"
Compound Width 4.5"
Bed Length 59"
Bed Width 11.75"
Quill Diameter 2.25"
Quill Travel 5"
Quill Center Taper MT #4
Spindle Motor 7.5 HP
Voltage 230V/460V
Phase 3 Phase
Power Consumption (230V) 8KVA/25 Amps
Power Consumption (460V) 8KVA/12.5 Amps
Approximate Weight 3,600 lbs
Dimensions 7.05 x 2.66 x 3.91 ft
