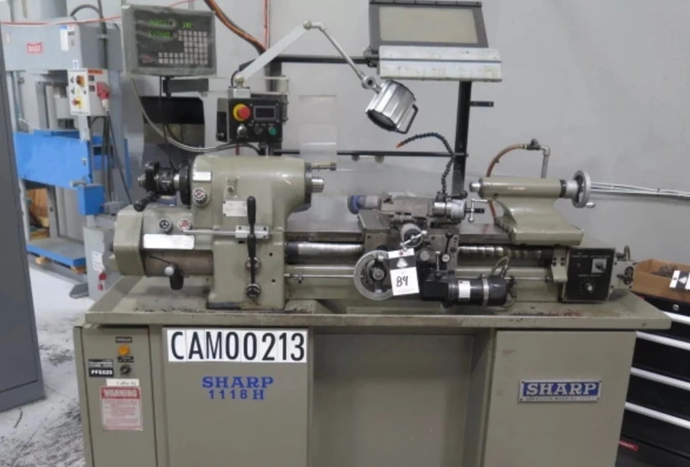

Sharp ENGINE LATHE 4000 RPM 1118H

Capacity:
Swing over bed: 11"
Swing over carriage: 9"
Swing over cross slide: 6"
Distance between centers: 18"

Spindle:
Spindle speed range (infinitely variable): 130–4000 RPM
Spindle bore: 1"
Spindle nose taper (inside): 5C (10°)
Spindle nose taper (outside): 4°

Travel & Feed Range:
Cross slide travel: 6"
Compound slide travel: 3"
Quick-action compound slide travel: 0.1"
Carriage power feed range: 5/16–7"
Cross slide power feed range: 5/16–4"

Threading:
Leadscrew pitch, diameter: 8 TPI, 1"
Inch threads (36): 11–108
Metric threads (36): 0.275–2.7

Tailstock:
Tailstock spindle diameter: 1.358"
Tailstock spindle taper: MT #2
Tailstock spindle travel: 3.75"

Equipped With:
5C collet system (5C collets)
Expanding chucks capability: up to 3"
Step chucks range: 1-1/16–6"
Jaw chuck compatibility: 5"
Cross slide power feed system
Variable speed digital spindle motor
Main motor: 5 HP
Coolant pump motor: 0.25 HP
Feed motor (DC): 75 W, 110 V
Coolant tank capacity: 5 gallons
Approximate machine weight: 2300 lbs
Dimensions (W×D×H): 73" × 30" × 75"
