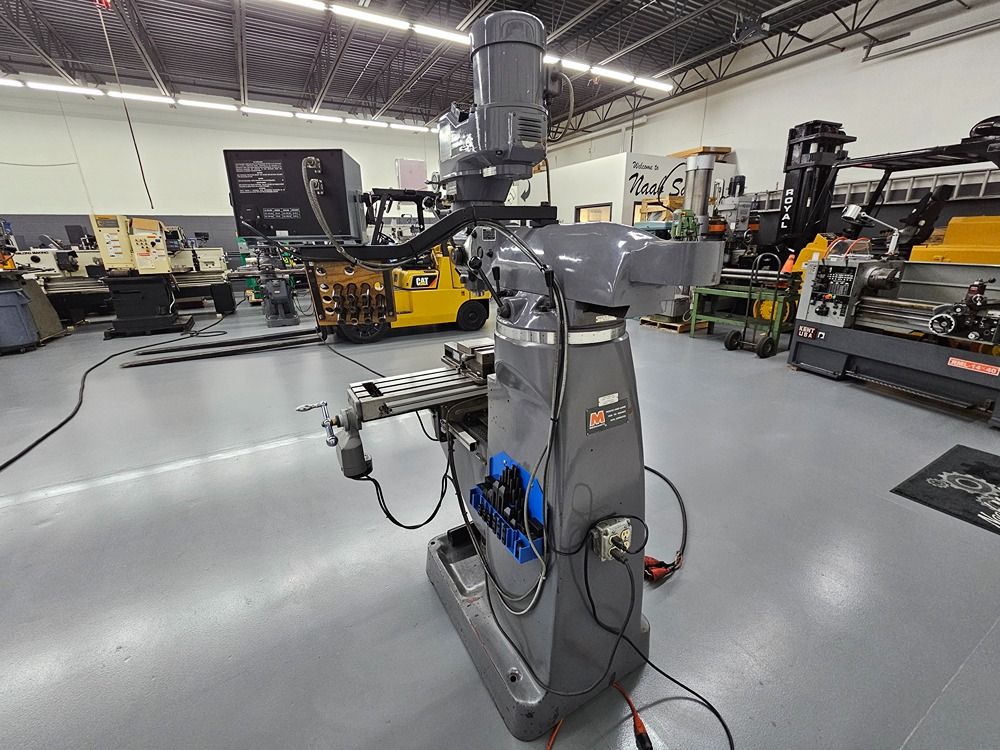

Sharp LC 1½ VH Vertical Mill 4,500 RPM

Table working surface: 9 × 42 in
T-Slots: 3, 5/8 in
Table travel X-axis: 30 in
Saddle travel Y-axis: 12 in
Ram travel: 12 in
Quill travel: 5 in
Knee travel: 16 in
Spindle to column (min-max): 6-3/4 – 18-1/2 in
Spindle nose to table: 2-1/8 – 18 in
Spindle motor: 3 hp
Spindle speed: 60–4,500 RPM
Spindle taper: R-8
Quill feed (IPR): 0.0015, 0.003, 0.006 in
Head swivel: 360°
Head tilt right-to-left: 45° each way
Head tilt up-and-down: 45° each way
Electrical: 220V, 3Ph, 60Hz
Weight: 2,400 lb
Acu-Rite 2 Axis DRO
X-axis servo power feed
One Shot lube system
New kit of hold downs
Collets and holder
Kurt vise and handle
