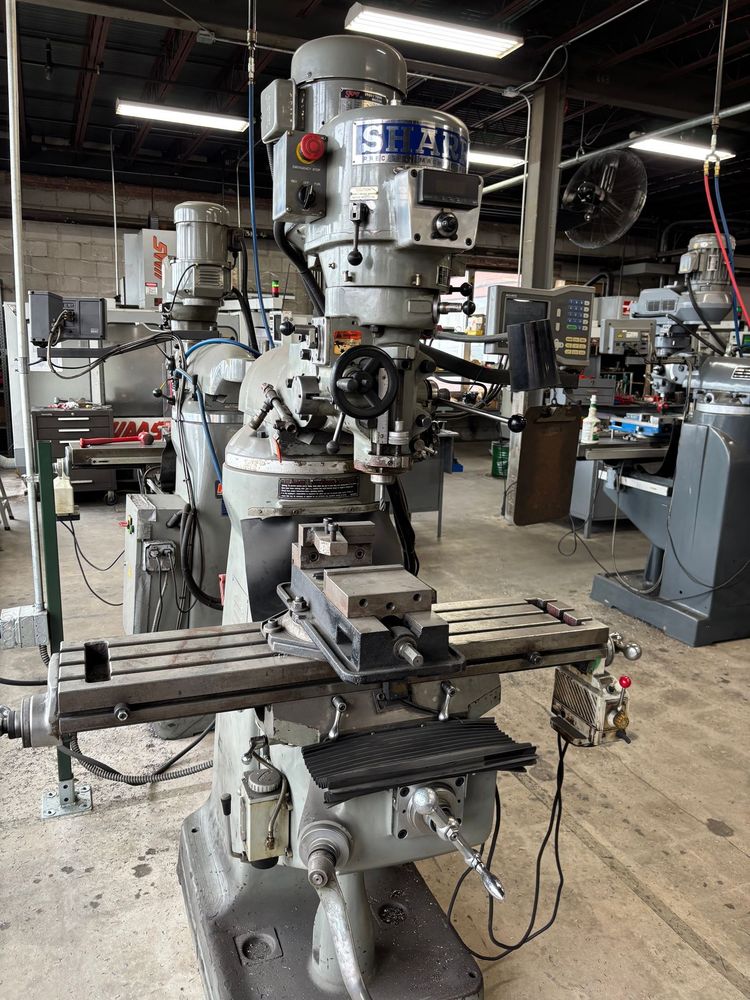

Sharp LMV/DVS Vertical 4500 rpm

Table Size: 9" x 42"
T-Slots: 3 x 5/8"
Longitudinal Travel (X): 30"
Cross Travel (Y): 12"
Knee Travel (Z): 16"
Ram Travel: 12"
Spindle Center to Column Min: 6-3/4"
Spindle Center to Column Max: 18-1/2"
Spindle Nose to Table Min: 2-1/8"
Spindle Nose to Table Max: 18"
Head Swivel Left/Right: ±45°
Head Tilt Front/Back: ±45°
Quill Diameter: 3-3/8"
Quill Travel: 5"
Quill Power Feeds: 0.0015 in/rev
Quill Power Feeds: 0.003 in/rev
Quill Power Feeds: 0.006 in/rev
Spindle Taper: R8
Spindle Motor Power: 3 HP
Spindle Speed Range Low Gear: 60–500 rpm
Spindle Speed Range High Gear: 500–4500 rpm
Digital Readout
Digital Variable Speed
Double Fan Cooling System in Head
One Shot Lubrication System
Front Saddle Way Covers
Rear Saddle Way Covers
Chromed Table Ways
Chromed Saddle Ways
Chromed Gibs
Meehanite Castings
R8 Collets
Milling Vise
Machine Weight: 2400 lb
Machine Dimensions: 71" x 63" x 81"
