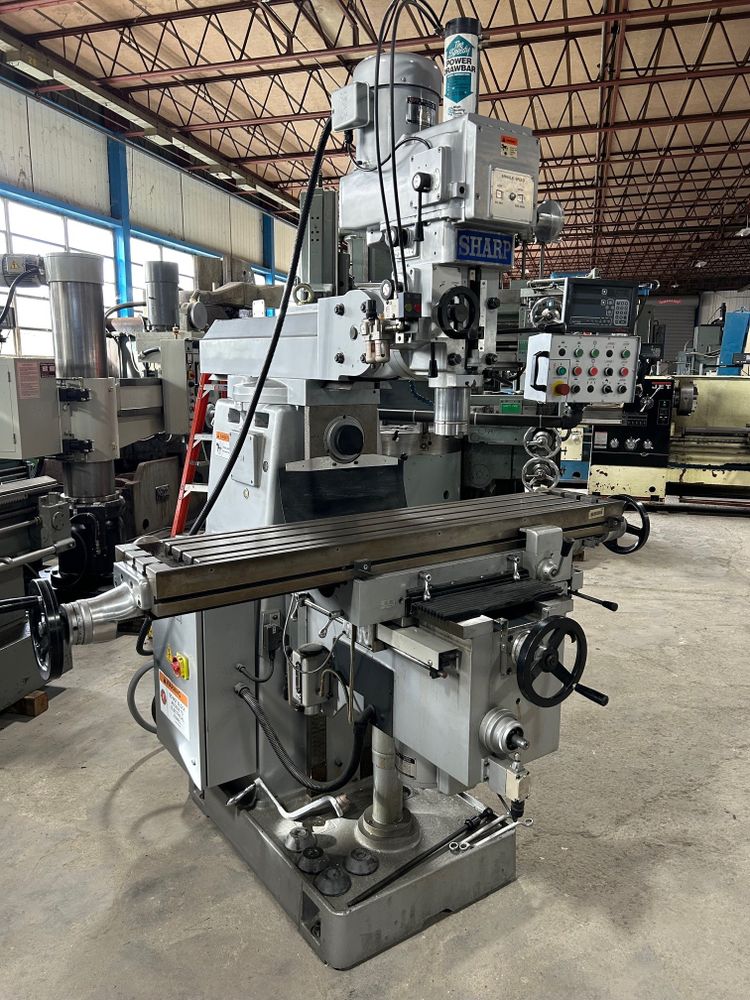

Sharp VH-25 VERTICAL/HORIZONTAL Variable Speed

Working surface 10" x 56"
Longitudinal travel 36"
Cross travel 16.5"
Longitudinal feeds 7/8–27 IPM
Longitudinal rapid traverse 82.5 IPM
Vertical knee travel 17.5"
Ram travel 18.5"
Power quill feeds 0.0016 / 0.003 / 0.006 IPM
Quill travel 5"
Quill diameter 3.5"
Turret swivel 360°
Head tilt front/back 45°
Head tilt left/right 90°
Spindle center to column 12-13/16" – 30-11/16"
Spindle nose to table 5-5/16" – 23"
Horizontal spindle center to table 0 – 17-3/8"

Spindle motor vertical 4 HP
Spindle motor horizontal 5 HP
Vertical spindle speeds 60–4500 RPM
Horizontal spindle speeds 80 / 120 / 230 / 380 / 700 / 1350 RPM
Spindle taper vertical NST 40
Spindle taper horizontal NST 40

Net weight 4200 lbs
Machine dimensions 82" x 75" x 93"

Newall two-axis digital readout
Longitudinal table powerfeed with rapid traverse
Rapid knee traverse
Hardened and ground boxways on saddle and column
Flood coolant
