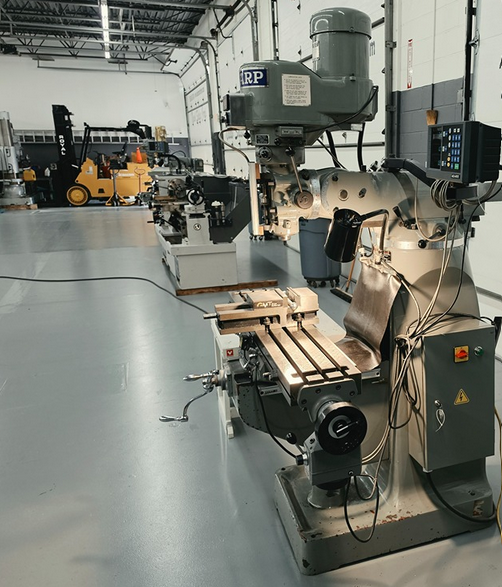

Sharp LMV-50 DVS Vertical 4500 rpm

Table size: 9" × 50"
X-axis travel: 36.6"
Y-axis travel: 12"
Quill travel: 5"
Ram travel: 12"
Knee travel: 16"
Spindle center to column: 6.75"–18.5"
Spindle nose to tabletop: 2.125"–18"
Spindle taper: R-8
Spindle speed range: 60–4500 rpm
Spindle motor power: 3 HP
Quill feed rates: 0.0015" / 0.003" / 0.006" per rev
Quill diameter: 3.375"
Head swivel: 360°
Head tilt (left/right): 45°
Head tilt (up/down): 45°
Power supply: 220 V
Single-phase operation: capable
Power consumption: 3 kVA / 8 A
3-axis Acu-Rite DRO
Digital variable speed drive
Right-angle head
6" work vise
2 work lights
One-shot lubrication system
Chrome ways
Work hold-down set
R-8 collets and holder
Floor space (W×D×H): 7' × 6.5' × 6.75'
Machine weight approx.: 2,500 lbs.
