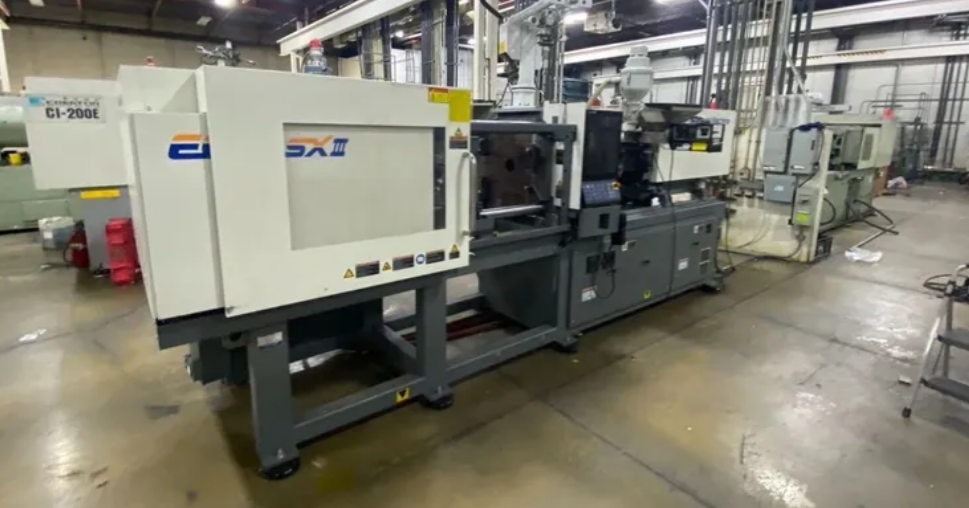

Shibaura EC140SXIIIV70-U34-4A 140 T

Type All Electric
Clamping Force Tonnage 140 T
Barrel Code 4A
Shot Volume (PS) 6.4 oz
Shot Volume (PE) 5.1 oz
Screw Diameter 1.57"
Maximum Injection Pressure 29000 psi
Maximum Holding Pressure 29000 psi
Screw Speed STD 320 rpm
Injection Rate STD 15.3 ft³/min.
Injection Rate High Speed 30.7 ft³/min.
Screw Torque STD lbf
Plasticizing Capacity (PS) STD OZ/Sec
Nozzle Touch Force 2 T
Tie Bar Distance H 20.1"
Tie Bar Distance V 18.1"
Platen Dimension H 28.3"
Platen Dimension V 26.4"
Clamp Stroke 15.7"
Maximum Daylight 37.4"
Mold Height Min 7.1"
Mold Height Max 21.7"
Ejector Force 3.3 T
Ejector Stroke 3.54"
Main Breaker Electric Capacity 48 kva
Heater Capacity 11.2 kva
Injection Orientation Horz
Control CNC (INJECTVISOR V 70)
Dimensions 16.7 x 4.7 x 5.6
Weight 11,600
Dual Air Blow Auto Purge
Ejector Motor with Brake
Heater Band Failure Alarm
Hopper Throat Temperature Control
Selectable Signal Output (x6)
Mold Ejector Plate Monitor
Pneumatic Mold Valve Gate (1 Zone)
Simultaneous Screw Charging and Clamp
SPI Robot Interface Recept (50pin/Euromap67)
USB Memory Port

Equipped With
Screw Anti-Wear DBG Design & Tungsten Carbide Barrel in lieu of standard
