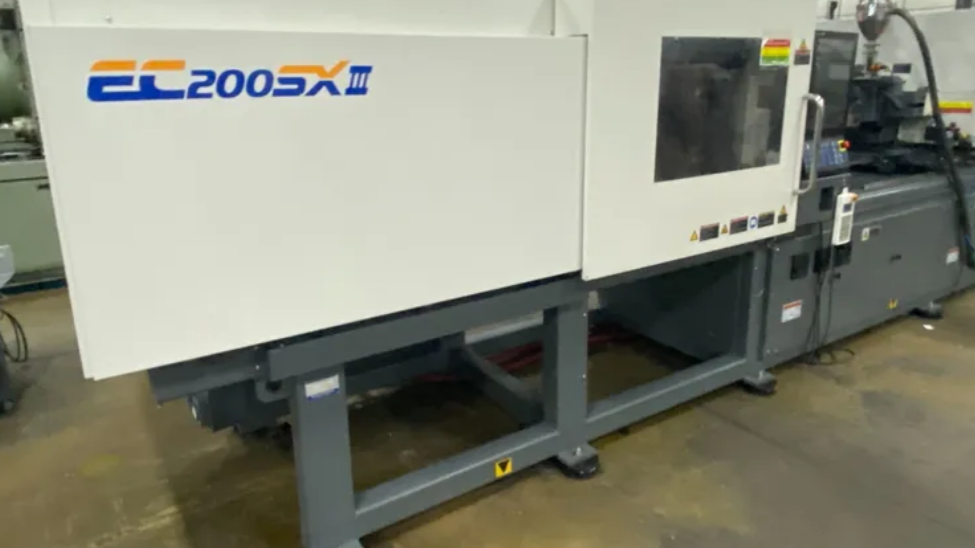

Shibaura EC200SXIIIV70-U48_8B 198 T

Clamping Force Tonnage 198 T
Barrel Code 8B
Shot Volume (PS) 15.4 oz
Shot Volume (PE) 12.2 oz
Screw Diameter 2.17"
Maximum Injection Pressure 23900 psi
Maximum Holding Pressure 23900 psi
Screw Speed STD 230 rpm
Injection Rate STD 23.2 ft³/min.
Screw Torque STD 1048
Plasticizing Capacity (PS) STD OZ/sec
Nozzle Touch Force 0.33 T
Tie Bar Distance H 22"
Tie Bar Distance V 20.1"
Platen Dimension H 31.1"
Platen Dimension V 29.1"
Clamp Stroke 17.7"
Maximum Daylight 41.3"
Mold Height Min 7.87"
Mold Height Max 23.6"
Ejector Force 5.5 T
Ejector Stroke 5.12"
Main Breaker Electric Capacity 61 kva
Heater Capacity 15.8 kw
Injection Orientation Horz
Control CNC (INJECTVISOR V 70)
Dimensions 19.9 x 5.1 x 5.9 FT
Weight 16,000 lbs
Screw Anti-Wear DBG Design & Tungsten Carbide Barrel in lieu of standard

Equipped With
Dual Air Blow Auto Purge
Pneumatic Core Pull-Single (Timer Only)
Ejector Motor with Brake
Heater Band Failure Alarm
Hopper Throat Temperature Control
Selectable Signal Output (x6)
Mold Ejector Plate Monitor
Pneumatic Mold Valve Gate (1 Zone)
Simultaneous Screw Charging and Clamp
SPI Robot Interface Recept (50pin/Euromap67)
USB Memory Port
