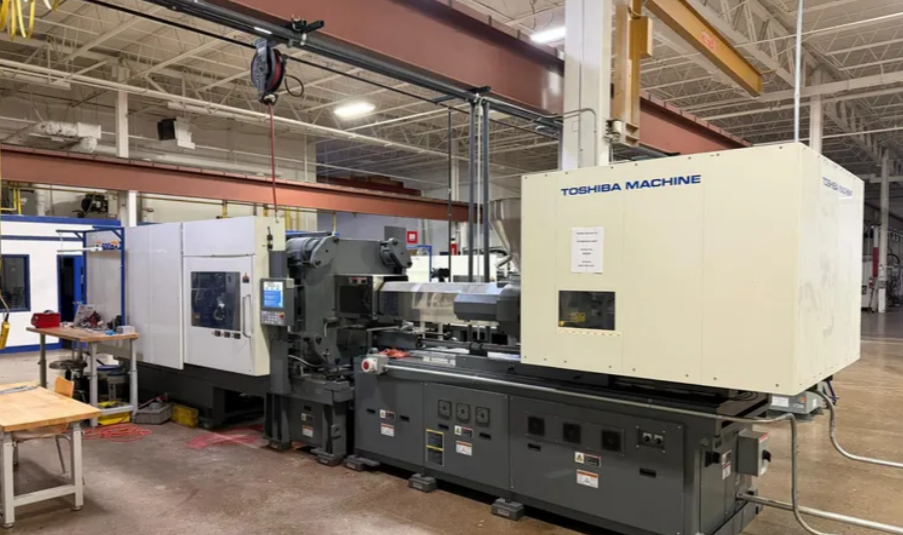

Shibaura EC500SXIIV50-36AT 500 T

Type All Electric
Clamping Force Tonnage 500 T
Shot Volume (PS) 61 oz
Shot Volume (PE) 48.3 oz
Screw Diameter 3.15"
Maximum Injection Pressure 27600 psi
Maximum Holding Pressure 27600 psi
Screw Speed STD 170 rpm
Screw Speed High Torque 115 rpm
Injection Rate STD 8,043 ft³/min.
Screw Torque STD 3310
Screw Torque High Speed 4610
Plasticizing Capacity (PS) STD 94.4 oz
Plasticizing Capacity (PS) High Torque 61.1 oz
Nozzle Touch Force 6.6 T
Tie Bar Distance H 34.2"
Tie Bar Distance V 31.8"
Platen Dimension H 48.4"
Platen Dimension V 45.7"
Clamp Stroke 31.5"
Maximum Daylight 70.9"
Mold Height Min 13.8"
Mold Height Max 39.4"
Ejector Force 14.3 T
Ejector Stroke 7.1"
Power supply Volts 230
Main Breaker Electric Capacity 200
Heater Capacity 34.3 kw
Injection Orientation Horz
Hours 4,091 hr.
Control CNC (InjectvisorV50)
Dimensions 28.0 x 7.0 x 7.2 Feet
Weight 26.4 US Ton
