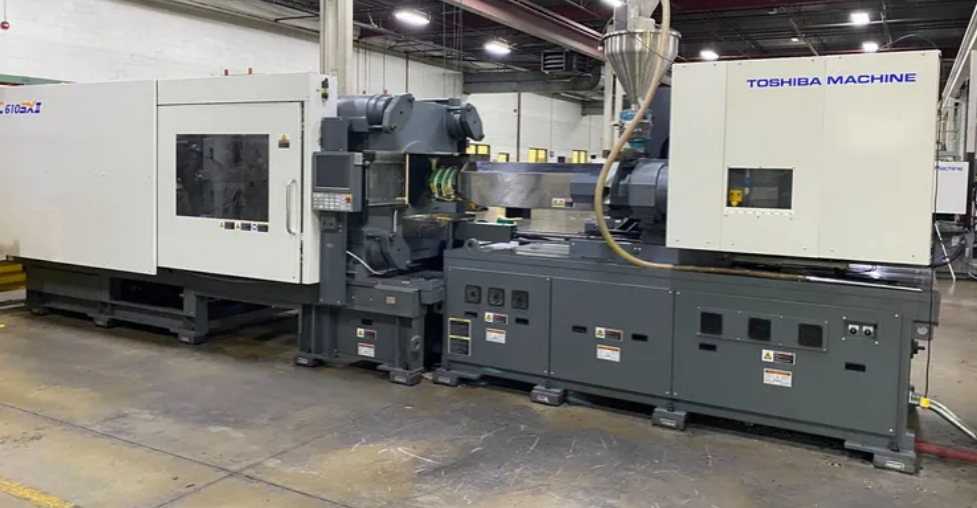

Shibaura EC610SXIIV50-26AT 606 T

Type All Electric
Clamping Force Tonnage 606 T
Shot Volume (PS) 43.3 oz
Shot Volume (PE) 34.6 oz
Screw Diameter 2.76"
Maximum Injection Pressure 27500 psi
Maximum Holding Pressure 23200 psi
Screw Speed STD 120 rpm
Injection Rate STD 37.5 ft³/min.
Screw Torque STD lbf
Screw Torque High Speed 2440
Plasticizing Capacity (PS) STD 2.6 oz
Plasticizing Capacity (PS) High Torque 1.7 oz
Nozzle Touch Force 5 T
Tie Bar Distance H 38.1"
Tie Bar Distance V 35.8"
Platen Dimension H 53.7"
Platen Dimension V 51.2"
Clamp Stroke 35.4"
Maximum Daylight 74.8"
Mold Height Min 15.7"
Mold Height Max 39.4"
Ejector Force 14.3 T
Ejector Stroke 7.1"
Main Breaker Electric Capacity 83 kva
Heater Capacity 26.5 kw
Injection Orientation Horz
Control CNC (InjectvisorV50)
Dimensions 27.5 x 7.5 x 7.3
Weight 59,800 lbs
