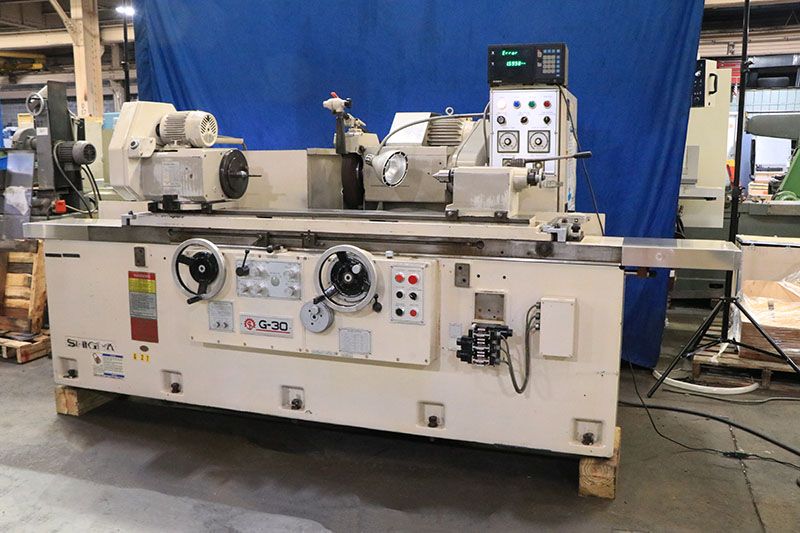

Shigiya GUA-30-100

SHIGIYA GUA-30-100
1985

Swing Capacity: 11.8"
Distance Between Centers: 40"
Longitudinal Table Speed: 2" to 160" IPM
Table Swivels: 7° CCW / 1° CW
Max Manual Wheelhead Stroke: 6.9"
Rapid Traverse (Hydraulic): 1.6"
Max Auto Infeed Stroke: 0.4"
Auto Infeed Rate: 0.00004" to 0.004"
Auto Plunge Infeed: 0.0008" to 0.06"
Handwheel Travel per Rev: 0.04"
Fine Feed (Microfeed) Graduation: 0.0001"
Wheelhead Swivels Left & Right: 30°
Grinding Wheel Size: 14" dia x 1"-2" width x 5" bore
Grinding Wheel Speeds: 1,675 / 2,013 RPM
Workhead Spindle Taper: #4 MT
Workhead Spindle Speeds: 13 to 252 RPM (9 speeds)
Workhead Swivel Range: 120° total
Tailstock Spindle Taper: #4 MT
Tailstock Spindle Travel: 1.2"
Approximate Machine Weight: 7,260 lbs
Approximate Dimensions: 108" L x 82" D x 60" H
Power Table Traverse
Adjustable Table Dwell
Auto Infeed
Dual Rate (Coarse/Fine) Plunge Infeed
Rapid Wheelhead Advance & Retraction
Independent Sparkout Timers for Auto Infeed & Plunge Grinding
Hydrostatic Bearing Design Wheelhead (Auto-Pressure Lubricated)
External Hydraulic System
Separate Lubrication System for Wheelhead Spindle Oil
Automatic Lubrication System for Ways
Dual Live/Dead Workhead Spindle
5 HP Wheelhead Motor, 3/60/230-460 Volts
Coolant System with Magnetic Separator
Sony 2-Axis Digital Readout
14" Grinding Wheel
Center in Workhead, #4 MT
Work Light
Dial Indicator for Table Swivel
Machine Wired for 3/60/220 Volts
