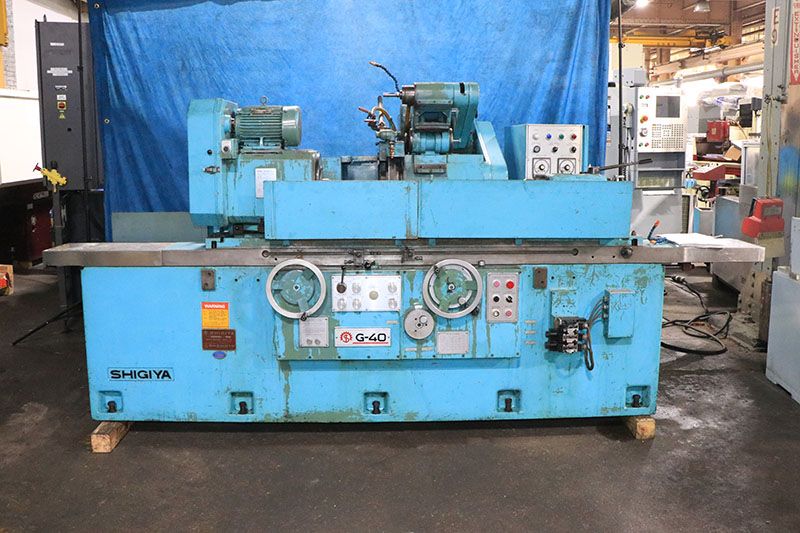

Shigiya GUA-40-100

SHIGIYA GUA-40-100
1984

Swing Capacity: 16"
Max Grinding Diameter: 16"
Distance Between Centers: 36"
Max Workpiece Weight (Center Work): 330 lbs
Longitudinal Table Speed: 2" to 118" IPM
Handwheel Travel per Rev (Two-Speed): 0.4" & 1"
Table Swivel (Total): 7°
Wheelhead Swivel: +/- 30°
Grinding Wheel Size: 14" dia x 1"-2" width x 5" bore
Grinding Wheel Speeds: 1,660 / 1,880 RPM
Top Slide Adjustment: 4"
Max Manual Wheelhead Stroke: 6.9"
Rapid Traverse (Hydraulic): 1.5"
Max Auto Infeed Stroke: 0.3"
Auto Infeed Rate: 0.00004" to 0.004"
Plunge Infeed: 0.0008" to 0.06"
Handwheel Travel per Rev: 0.04"
Fine Feed (Micrfeed) Graduation: 0.0001"
Workhead Spindle Taper: #4 MT
Workhead Spindle Speeds: 18 to 360 RPM (9 speeds)
Workhead Swivel Range (Total): 120°
Tailstock Spindle Taper: #4 MT
Tailstock Spindle Travel: 1.2"
Approximate Machine Weight: 7,500 lbs
Approximate Dimensions: 106"L x 68"W x 65"H
Power Table Traverse
Adjustable Table Dwell
Automatic Infeed
Plunge Infeed with Coarse & Fine Rates
Rapid Wheelhead Advance & Retraction
Independent Sparkout Timers for Auto Infeed & Plunge (0 to 30 sec)
Automatic Retraction of Grinding Wheelhead at Cycle Completion
Fine Feed (Microfeed) Knob for Table Traverse
Hydrostatic Bearing Design Wheelhead (Auto-Pressure Lubricated)
External Hydraulic System
Automatic Lubrication System
Dual Live/Dead Workhead Spindle
Swing-Down ID Grinding Attachment
ID Grinding Spindle with Arbor
Large 3-Point Steady Rest
Center in Workhead
Wheel Balancing Stand, Cast Iron
5 HP Wheelhead Motor
Coolant System with Magnetic Separator
Machine Wired for 220 Volts
