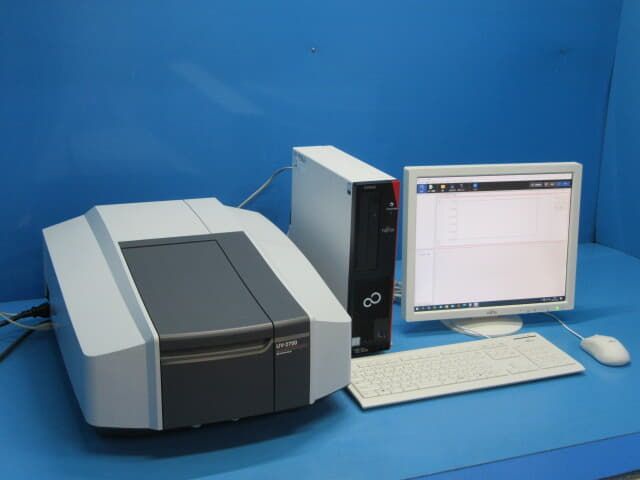

Shimadzu UV-2700

・Measurement wavelength range: 185nm~900nm
・Spectral bandwidth: 0.1, 0.2, 0.5, 1, 2, 5 nm
Photometric range: (Absorbance) -8.5 to 8.5 Abs, (Transmittance) 0 to 100,000%
- Photometry method: Double beam method
Light source: 50W halogen lamp, deuterium lamp, built-in automatic light source position adjustment mechanism
Spectrometer: (Pre-spectrometer) Littrow spectrometer with low stray light Lorelei grating
　　　　　　　　　　　　　(Main spectrometer) Czerny-Turner spectrometer with low stray light Lorelei grating
・Sample chamber (inner dimensions): W150 x D260 x H140 mm
・Power supply: AC100V to 240V, 50/60Hz 170VA
・External dimensions: W450×D600×H250mm
・Mass: 23kg
