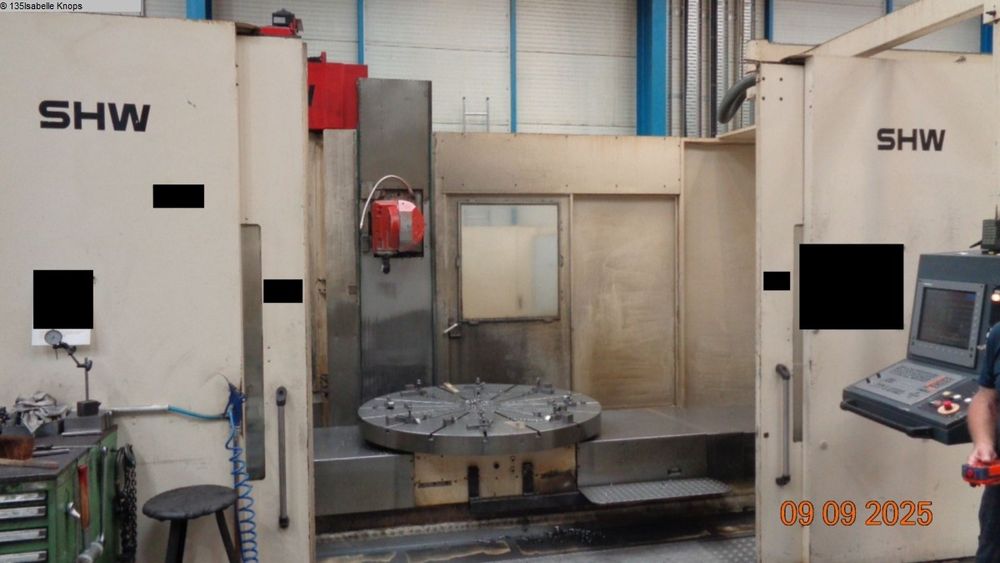

SHW UFZ 5 3 Axis

Traverses X-axis 2500 mm
Traverses Y-axis 1260 mm
Traverses Z-axis 1270 mm
Controlled rotary table diameter 1600 mm
Automatic universal milling head swiveling 360 x 1°
Automatic milling head swiveling 180 x 1°
Repeat accuracy at spindle nose +/- 0.002 mm
Accuracy +/- 3 sec
Control Heidenhain TNC 430
Spindle taper SK 50 DIN 69871
Tool clamping force 20 kN
Spindle motor power 26 kW at 100% duty, 32 kW at 60% duty
Spindle speed range 36–4000 rpm
Tool changer capacity 48 stations
Max tool diameter 125 mm (250 mm if adjacent pocket empty)
Max tool length 400 mm
Max tool weight 22 kg
Max tool torque 25 Nm
Tool change time approx. 10 sec
Spindle position at tool change horizontal
Tool coding fixed position
Spindle taper blow-out with compressed air at each tool change
Chip conveyor length approx. 2500 mm
Chip conveyor width approx. 350 mm
Chip conveyor discharge height approx. 1250 mm
Documentation available
