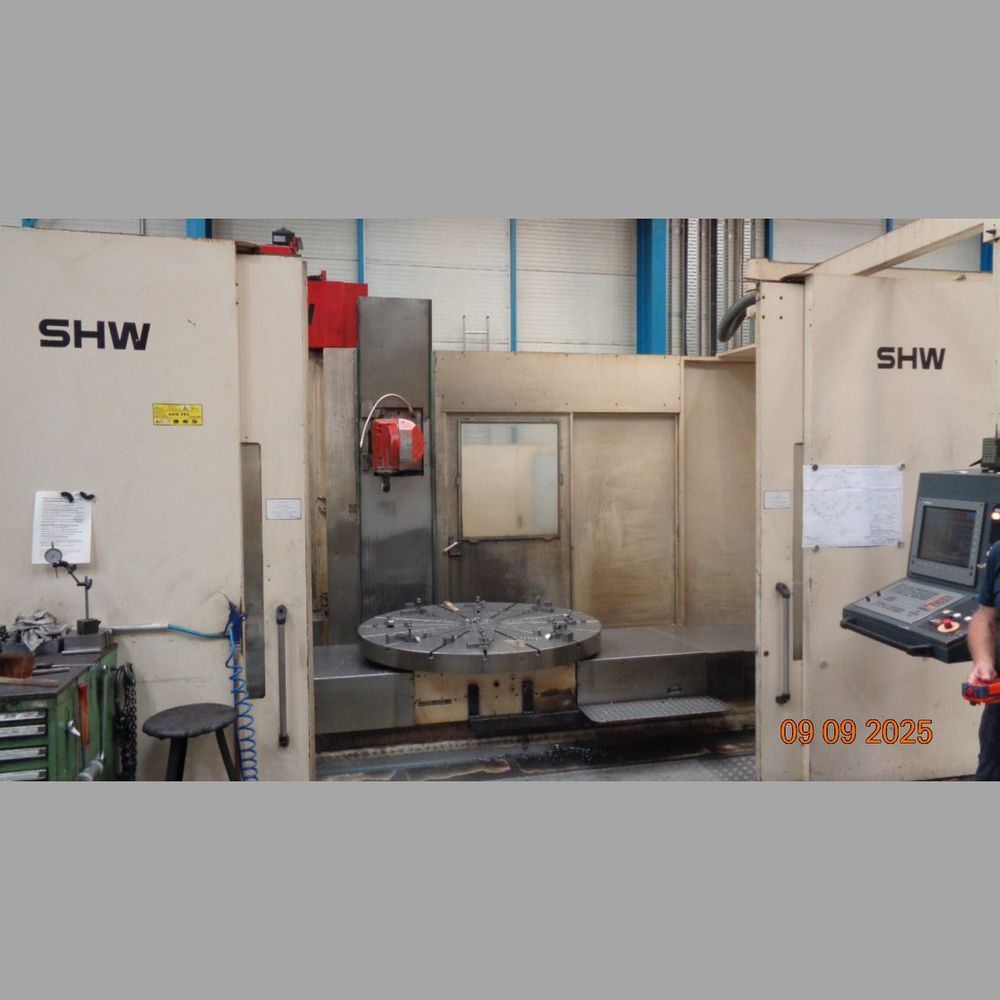

SHW UF 5 S 3 Axis

Ref : 2747971-3-GO

Condition : Used

Manufacturer : SHW

Model : UF 5 S

Nb Of Axis : 3 Axis

Year(s) : 1998

Quantity : 1

Location : Seller or machines location:
EUROPE (Western and Northern)

X travel: 2500 mm
Y travel: 1260 mm
Z travel: 1270 mm

Control: Heidenhain TNC 430
Tool taper: SK 50
Max spindle speed: 4000 rpm
Spindle power at 10-40/100% duty: 32/26 kW
Milling head automatic swivel-type: 360x1 degree
Milling head automatic swivel-type: 180x1 degree
Tool magazine: 48 stations

Max tool diameter: 125 mm
Max tool diameter without adjacent tools: 250 mm
Max tool length: 400 mm
Max workpiece weight: 22 kg

Tool change time: 10 s
Rotary table NC-controlled
Air cleaning of tool taper in tool magazine
Partly enclosed work area
Work area light
Chip conveyor
Coolant unit

Machine hours: approx. 19295
Program run hours: approx. 9323
Control hours: approx. 22237
