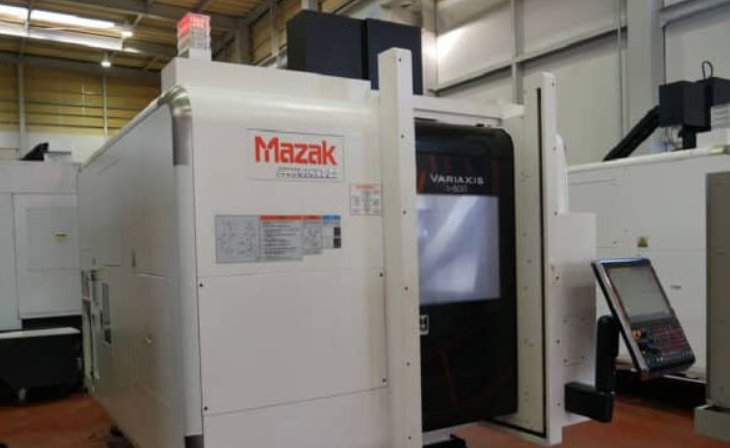

Mazak VARIAXIS i-500 5 Axis

X-axis travel: 13.78"
Y-axis travel: 21.65"
Z-axis travel: 20.08"
A-axis travel: -120° to +30°
A-axis indexing sensitivity: 0.0001°
C-axis travel: ±360°
C-axis indexing sensitivity: 0.0001°
Rapid traverse X/Y: 2362 ipm
Rapid traverse Z: 2204 ipm
Control system: Mazatrol SmoothX CNC
Simultaneous controlled axes: 5
Maximum workpiece diameter: 19.69"
Maximum workpiece height: 13.78"
Maximum table load: 661 lbs.
Spindle taper: No. 40
Tool shank: BT40
Spindle speed: 35–18,000 rpm
Spindle motor power: 45 / 35 HP
Distance from spindle nose to table top: 1.97"–22.05"
Distance from spindle nose to table center: 1.57"–22.05"
Tool magazine (ATC)
Maximum tool diameter: 3.54" (adjacent pockets occupied)
Maximum tool diameter: 5.12" (adjacent pockets empty)
Maximum tool length: 11.81"
Chip-to-chip time: 4.49 sec
Indexing time: 0.50 sec / 90° (A-axis)
1-pallet configuration
Machine dimensions: 127" × 95" × 118"
Machine weight: 17,637 lbs
