Sidel 30L917, PET Complete Bottling Line

Speed: 18,500 BPH (2 L bottles)
PET Preform Tipper VE.CO. – Year 1997
Model: 30L917
PET Preform Orientator Sidel – Year 1999
Model: XMMC94

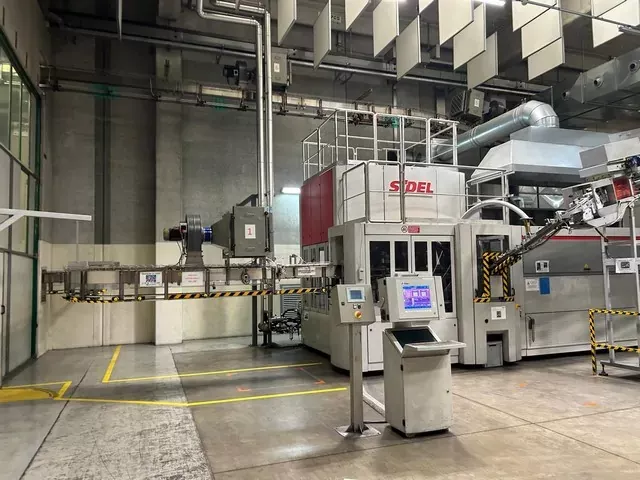

PET Blower Sidel – Year 1999
Model: SBO14
Number of molds: 14
Air recovery system
Air Conveyors Lanfranchi – Year 2007
Monoblock Sidel-Simonazzi and Capper Arol
Model: EUROSTAR RAA282 – Year 1985
Direction: Clockwise
Rinser
50 grippers
Manual carousel height adjustment
Fixed nozzle
1 treatment with water
Filler
80 valves
Filling type: Isobaric
Valve type: Mechanical
Valve functions: Degassing and sanitization
Electric tank height adjustment
Capper Arol 10T – Year 1998
Model: TS EURO/K10T.350O
Manual head height adjustment
Cap type handled: 3-START HEXALITE
Cap dimensions: Ø 28.6 mm h: 10.5 mm
Cap feeding system: Pick & Place
Nitrogen Doser Terboven – Year 2008
Model: ISTE-CON 5
Cap Elevator P.Q.L. Meccanica – Year 2011
Model: 09B3
Type: Pneumatic
Level and Cap Inspector Heuft (Spectrum) – Year 2013
Model: HBBVXTXXX
Inspection type: Cameras
Checks the fill level; cap presence; incorrectly screwed caps
Complete with ejector
Labeller Krones – Year 1998
Model: CONTIROLL
Direction: Clockwise
Electric head height adjustment
15 plates with mechanical cam
Number of stations: 1
Labelling type: Roll-fed
Label types: WRAP-AROUND
Label Presence Inspector Heuft (Reflexx) – Year 2023
Model: ONE
Inspection type: Cameras
Laser Marker Lumonics – Year 2009
Model: SL301
Bottle Conveyor Belts Procomac – Year 2000
Model: P 3233/1A
Divider Procomac – Year 2000
Model: P3227
Shrink Wrapper Zambelli – Year 1999
Model: LFT3657
Version: Film launch
Type: Film only
Shrink Pack Conveyors Procomac – Year 2000
Model: P 3233/1A
Batch Coder Markem – Year 2010
Model: 9040
Type: Inkjet
Handle Applicator Comag – Year 1999
Model: H65/1
Bundle Divider L.M. – Year 2000
Model: 28809
Palletizer ACMI – Year 1999
Model: RASAR C/1350
Type: Pusher
Double infeed
Pallet magazine
Interlayer System
Pallet Wrapper Tosa-Acmi – Year 2012
Model: 120+475
Wrapping type: Rotating arm
Top sheet dispenser
Pre-stretch
Pallet Printer Eidos – Year 2009
Model: 7P6NRSA
General Information:
Supported bottle dimensions:
Ø min: 89 mm; Ø max: 95 mm
Height min: 145.90 mm; Height max: 344 mm
