Sidel PET Aseptic filling line

PET Aseptic filling line Sidel
There are 2 capacities: 18.000 ltr./h and 27.000 ltr. / h - depending on the bottle sizes
Capacity:
36.000 bph by 0,5 ltr. and 0,4 ltr.
18.000 bph by 1,5 ltr.
Year of manufacturing: 2006 - 2025

Aseptic line produces aseptic products and has been operating since 2006.
All maintenance activities have been done twice / year according to
OEM specification and with original OEM parts by OEM service technicians.

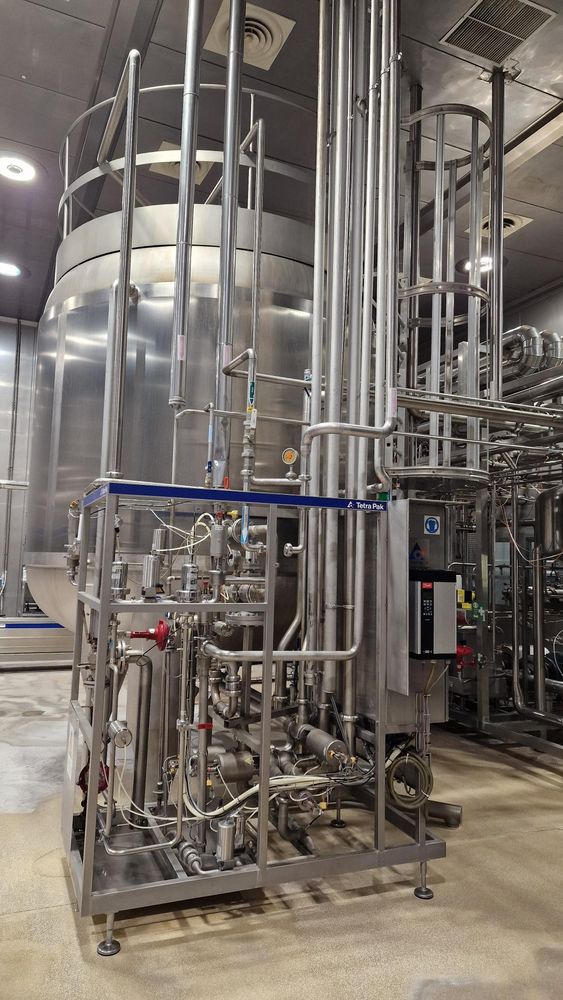

The line includes processing area (mixer, pasteurizer and aseptic tank) APA platform
(solution for sterilizing the PET bottles and caps), filler, CIP modules for
processing and filler, 4 cameras full bottles inspector (360 degrees), accumulation table,
labeling machines (roll on and sleever) packer, palletizer and stretch wrapper.
OEM for the sensitive part of the line is Sidel and for processing – Tetra Pak.
Over the years, all main electronic components are upgraded and
updated according to the OEM, based on availability on the market and latest models.
The line is in a very good condition and it is still in production.The line can be inspected.

The line is consiting of:
Blowing machines:
Sidel SBO (2 pcs) 18,000 bottles / hour each. Upgraded with new preform chain design,
pre-blowing and blowing block valve optimized in 2025.

Filling equipment:

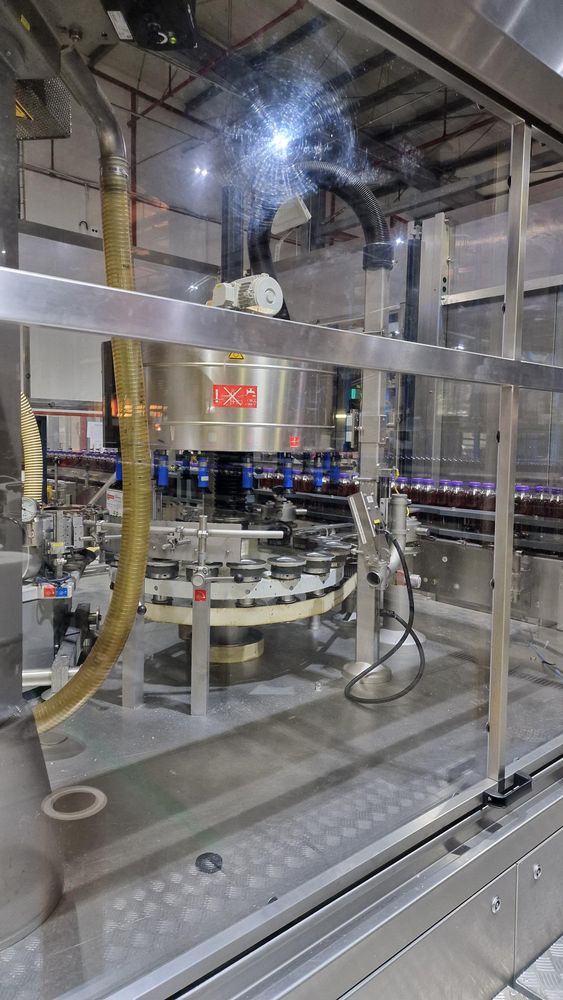

1. Aseptic filler Sidel type FMI 70 with decontamination areas for bottles and caps and

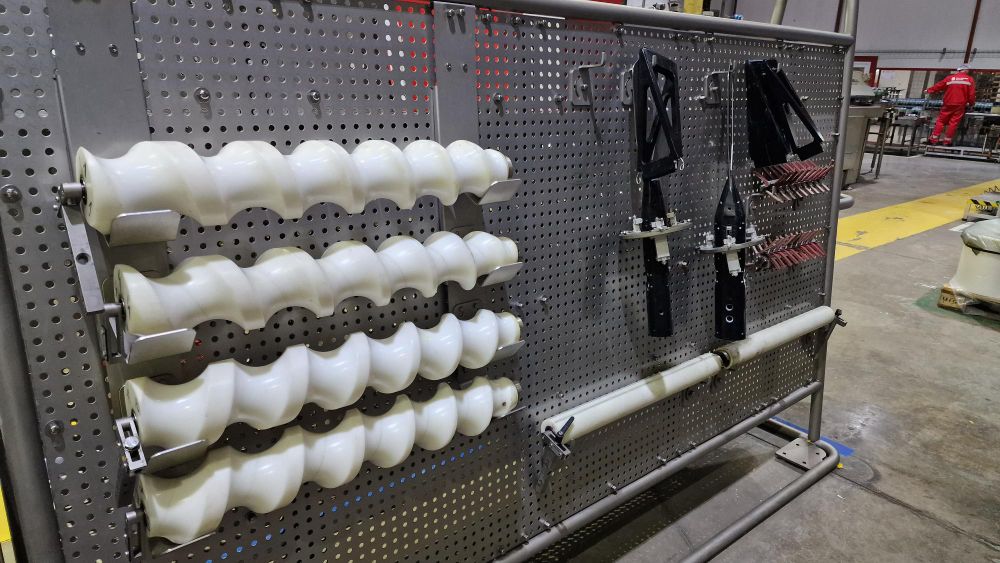

70 filling vales with sterile design. Change parts for 0,4L, 0,5L and 1,5L bottles.
Filling speed: 36,000 bottles / hour for 0,5L and 0,4L and 18,000 bottles / hour for
1,5L bottles.
2. VBS liquid N2 dosing system with sterilization module
3. Capper (upgraded for tethered caps 38mm) – producer Zalkin France
4. Data coder Videojet (ink) with tradability connection – communication with filler PLC

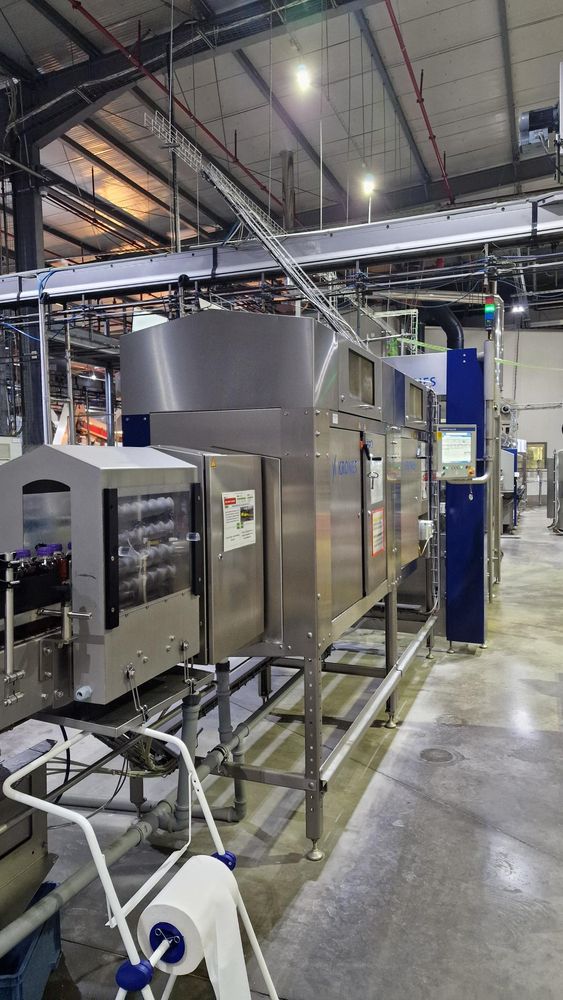

5. Full bottle inspector (filling level and caps) Heuft – produced in 2025

Packaging equipment:

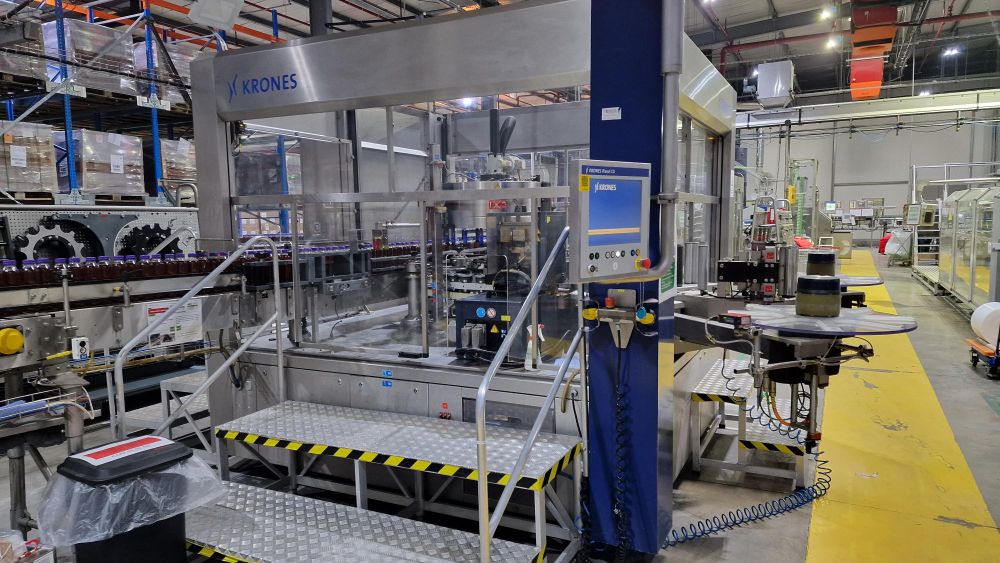

1. Roll on labeling machine Contiroll (Krones – 2012) speed: 42,000 bottles / hour
2. Sleever labeling machine Sleevematic (Krones – 2017) speed: 42:000 bottles / hour
3. Automatic sleeve feeding system with a magazine of 6 sleeve reels and
automatic change, including buffer
4. Labeling inspector (Krones- 2017)
5. Sleeve steam oven (Krones – 2017)
6. Packer: Zambelli – 3000 packs / hour upgraded in 2025 (film feeding and
cutting system and software)
7. Palletizer (Sidel Cermex – 2006)
8. Stretch wrapper Robopac – Italy – 2006 upgraded in 2015

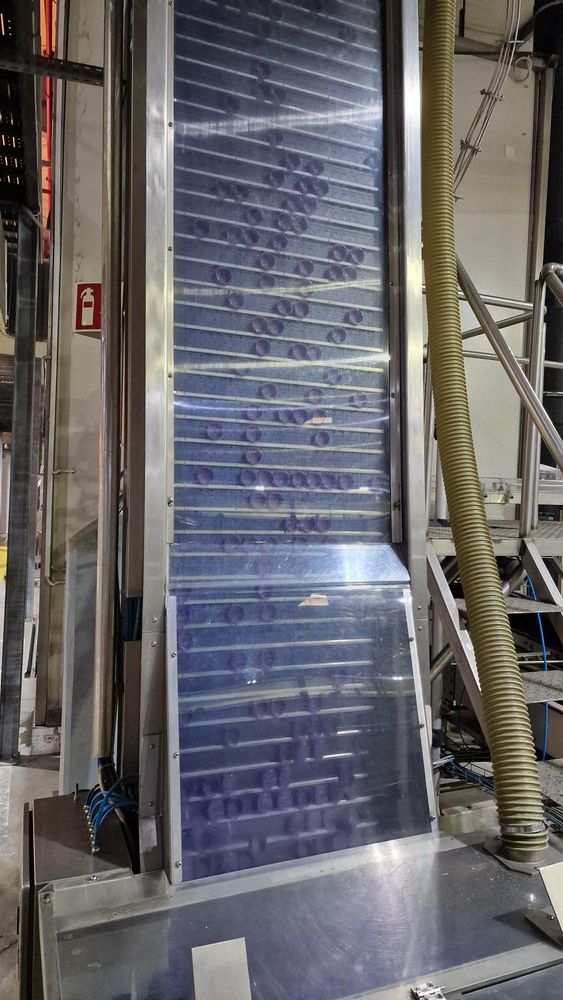

Caps feeder (Sidel)

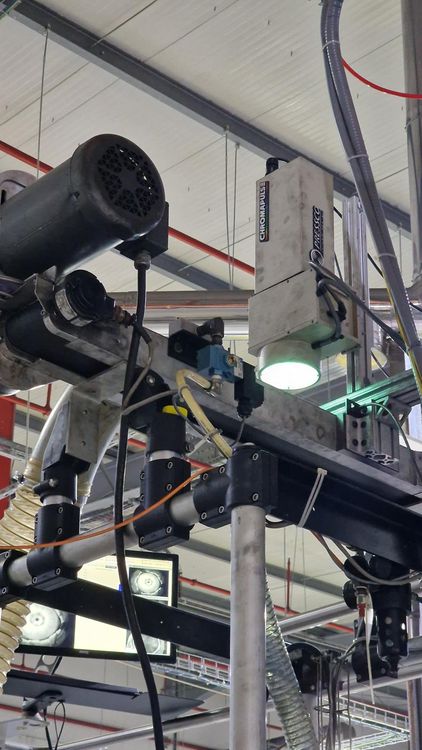

Empty bottles inspectors and caps inspectors: Presco – digital cameras (2pcs)

Processing Equipments:

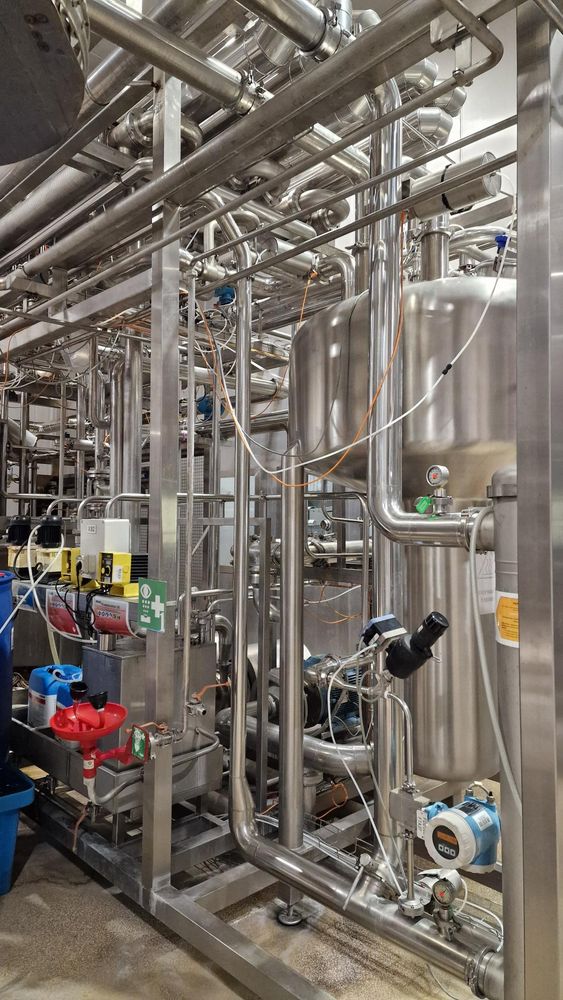

1. Almix (Tetra Pak) – concentrate (powder) dissolving system
2. Alblend (Tetra Pak) – mixer with a mixing ratio range: 1:2 – 1:5

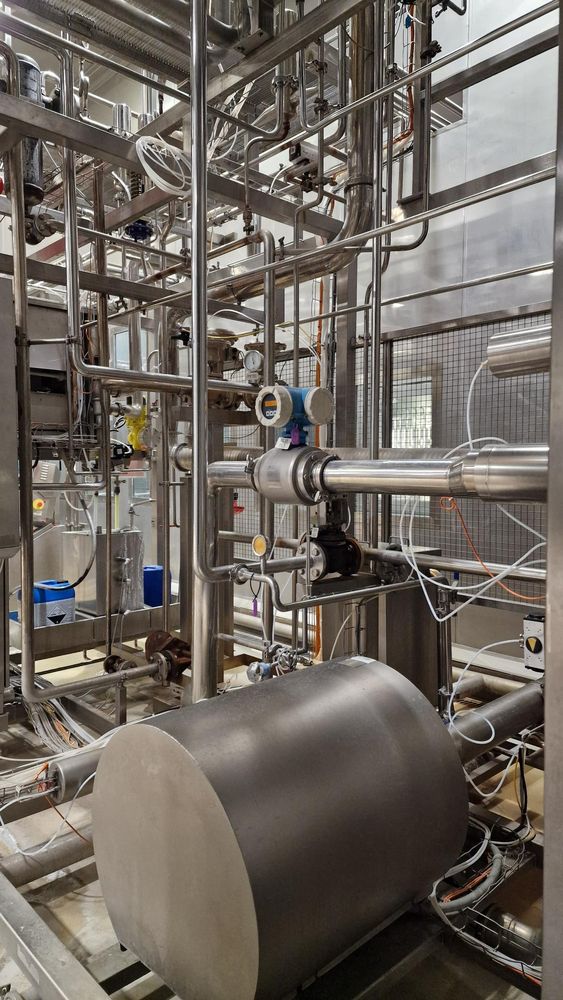

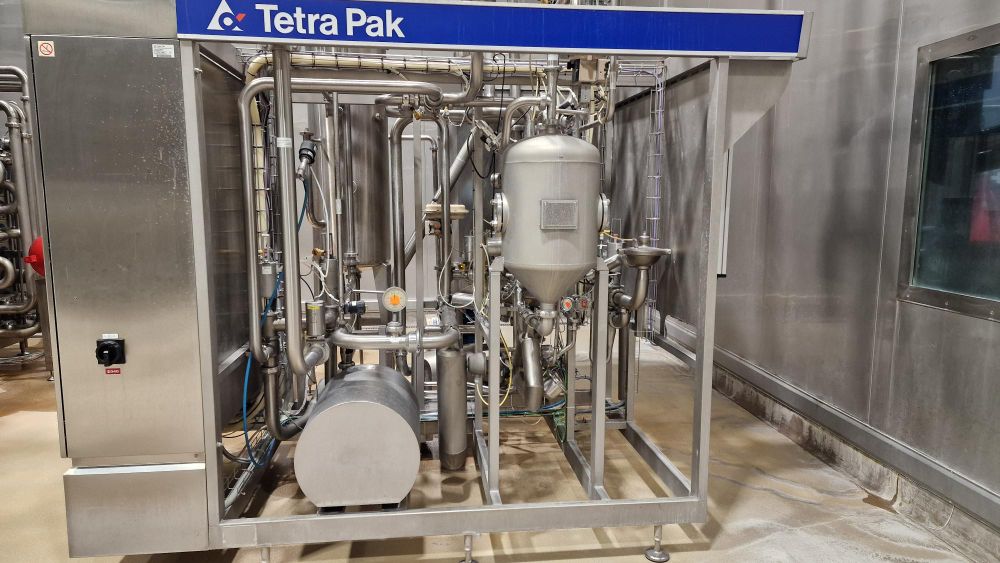

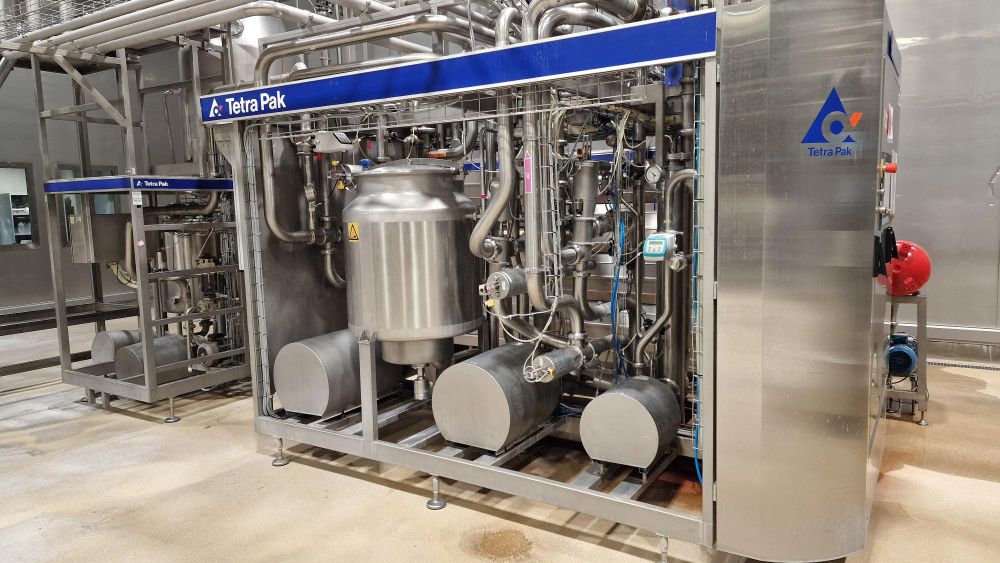

3. TADrink (Tetra Pak) – pasteurizer with tubular heat exchanger, heat recovery,
intermediate primary heating agent (steam / hot water/ product) and
intermediate cooling agent (water with propylene glycol/treated water/product)
a. There are 2 capacities, depending on the bottle size: 18,000 l/h and 27,000 l/h
b. Pasteurization temperature: 94-96 oC holding time between 20 and 40 seconds,
realized by configuration of holding tubes.
c. Inlet temperature: 20 oC – outlet temperature 30 oC - 35 oC
d. Efficient vacuum deaeration system – DO for output product with
