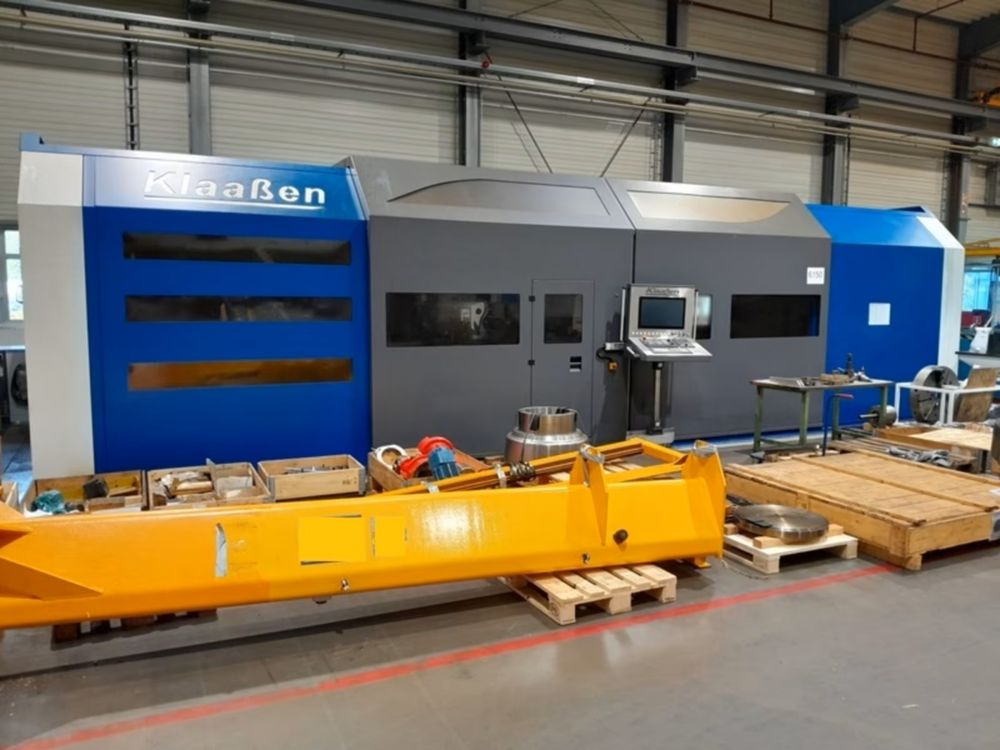

Siemens 840 Dsl Variable Speed KLAASSEN SDM15-5 4 Axis

X-axis travel: 1000 mm
Z-axis travel: 5000 mm
Y-axis travel: 350 mm
C-axis: Full C-axis with interpolation capability
Control: Siemens 840 Dsl
Collision monitoring system (3D real-time)
ShopTurn interface
Handheld control unit with handwheel
Turning diameter: 1500 mm
Swing diameter over cross slide: 1500 mm
Turning length: 4500 mm (5500 mm)
Main spindle bearing diameter: 395 mm
Main drive power: 2 x 31 kW
C-axis speed: 0 – 50 rpm
C-axis holding torque: 3000 Nm
C-axis torque: 3700 / 4430 Nm
Maximum workpiece weight: 6000 kg
Tool system: Drilling and milling capability
Tailstock quill diameter: 180 mm
Tailstock stroke: 170 mm
Tailstock taper: MK6
Tailstock force: 5 – 30 kN
Machine weight: 40 t
Chip conveyor system
Coolant system with 980 l tank
Full enclosure
Integrated extraction system
