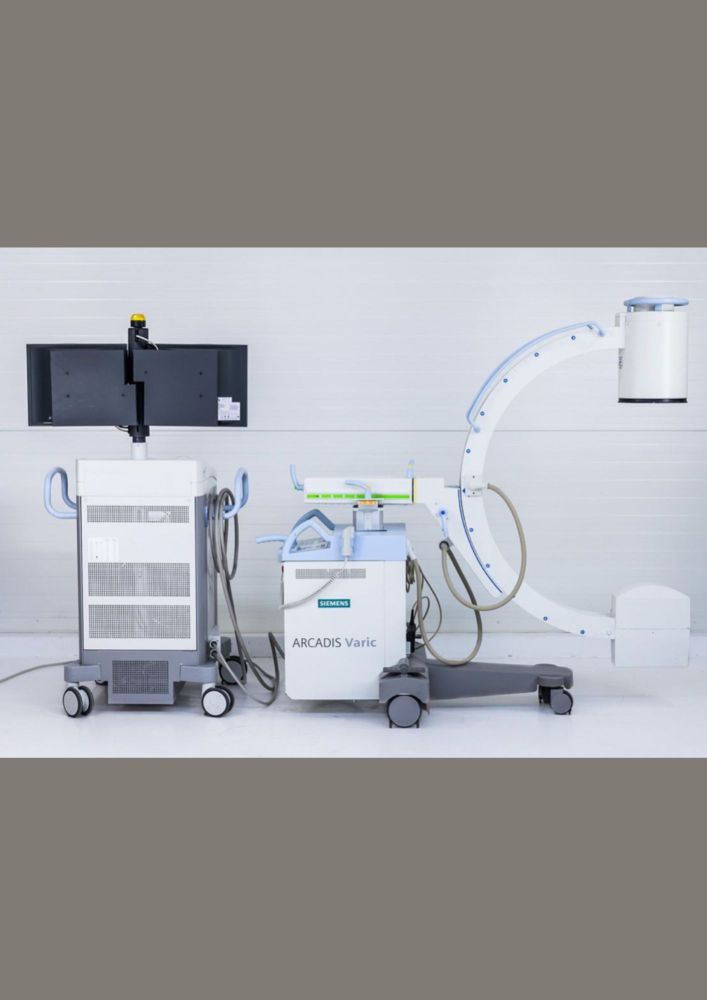

Siemens ARCADIS Varic

This intraoperative C-arm X-ray system is designed
for a wide range of clinical applications, from orthopedic
and trauma surgery to cardiology, vascular surgery, and urology.
It combines high-quality imaging with intuitive operation
and a digital image path providing 1024x1024 pixel resolution.

The system is equipped with an automatic exposure parameter selection function (EASY),
which guarantees stable image quality and optimal utilization of the radiation dose.
NaviLink 2D technology enables precise digital navigation in real time.

Key features
Year of production: 2010,
Image intensifier 9",
Digital video path – 1024×1024 resolution,
Full support of the DICOM 3.0 standard,
Power supply: 230 V, 50/60 Hz,
Generator power: 2.3 kW,
Orbital motion range: 130°,
Internal memory: up to 60,000 images,
Strong X-ray tube (current up to 13 mA) – can work continuously for over 50 minutes,
EASY function – automatic adjustment of dose, contrast and brightness.

Imaging modes
Fluoroscopy,
Pulsed fluoroscopy,
Digital radiography,
Subtraction,
Roadmap.

Standard equipment
C-arm with travel column and operator console,
X-ray generator and lamp,
Image intensifier/detector,
Medical monitors on a trolley,
Remote control,
Foot pedal,
Complete set of cables and accessories,
Technical documentation.

Clinical applications
Orthopedic and trauma surgery,
General surgery,
Cardiology,
Vascular surgery,
Urology.
