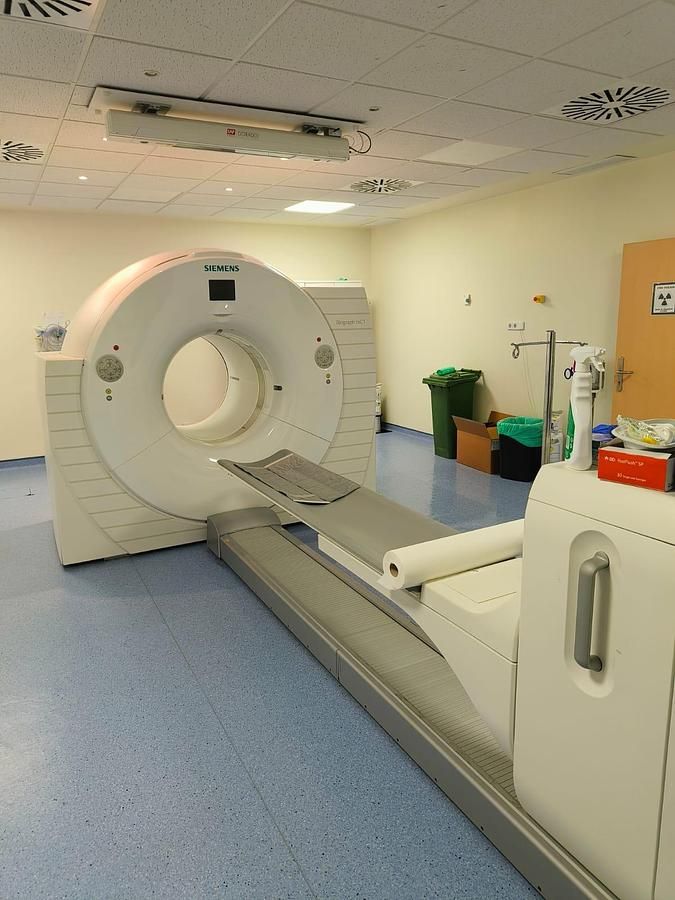

Siemens Biograph mCT 20 PET/CT

The Siemens Biograph mCT 20 PET/CT scanner is a 20-slice,
78 cm bore hybrid imaging system featuring 4×4×20 mm LSO crystals,
540 ps timing resolution (Time of Flight), and 500 lb (227 kg) table capacity.
It delivers high-resolution, fast, and quantitative PET imaging integrated
with a 20-slice CT, with options for SAFIRE iterative reconstruction
and iMAR metal artifact reduction. The system uses LSO crystal detectors
to provide superior image quality and TOF technology, aiding in high-speed,
low-dose, and accurate quantitative PET imaging.

System DOM: March 2015
System Software: PET/syngo VG62B
System Scan Seconds: 330256
Tube YOM/Type: 2024 Straton MX P (Model: 10141785)
Tube Scan Seconds: 320651

Key Technical Specifications
PET Components:
Crystal Type: Lutetium Oxyorthosilicate (LSO).
Crystal Size: 4x4x20 mm.
Axial Field of View (FOV): 16.4 cm or 22.1 cm.
Time of Flight (TOF): Yes, with 540 ps coincidence time resolution.
Sensitivity: 13.2 - 23.1 cps/kBq.
Transaxial FOV: 70 cm.
CT Components (20 Slice):
Generator Power: 80 kW, 100 kW.
Tube Voltages: 70, 80, 100, 120, 140 kV.
Rotation Times: 1.0, 0.5, 0.33, 0.30, 0.28 s.

CT Components (20 Slice):
Generator Power: 80 kW, 100 kW.
Tube Voltages: 70, 80, 100, 120, 140 kV.
Rotation Times: 1.0, 0.5, 0.33, 0.30, 0.28 s.
System & Patient Handling:
Bore Diameter: 78 cm.
Table Load Capacity: 500 lbs (227 kg).
Applications: Oncology, Cardiology, Neurology.

Software/Options:
SAFIRE (Iterative Reconstruction), iMAR (Metal Artifact Reduction), CARE Dose4D.

DOM/Year March 2015
