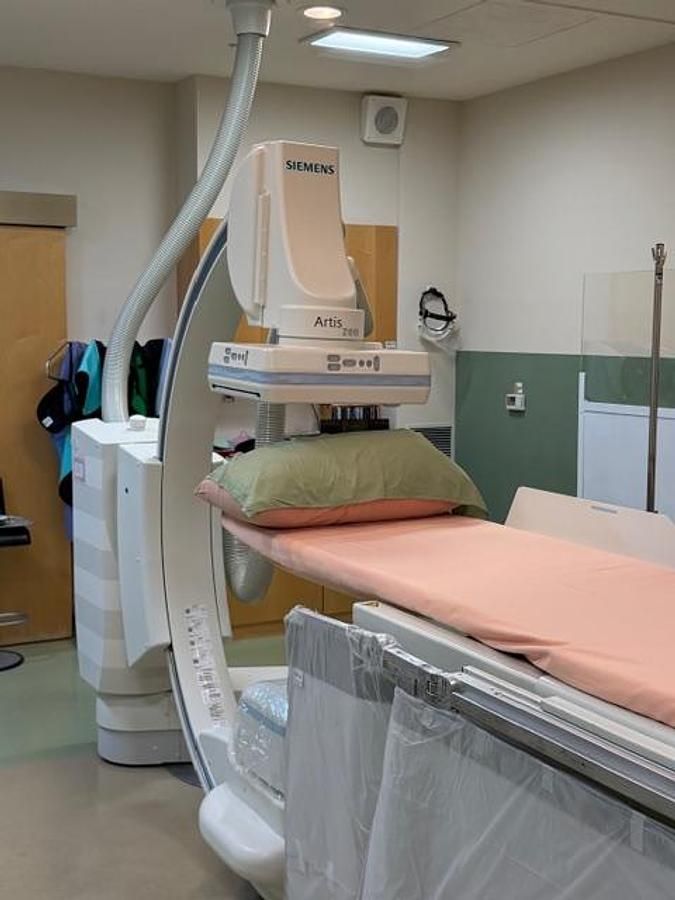

Siemens Axiom Artis zee XA Multi-Purpose Lab

The Siemens Axiom Artis zee is a high-performance interventional imaging system
designed for cardiology, vascular, and oncology procedures,
featuring the MEGALIX Cat Plus X-ray tube with up to 40% greater fluoro power.
It offers 2D/3D imaging, a 440 lbs (200 kg) patient weight limit,
with high-resolution 2k imaging detectors.

Key Technical Specifications
X-Ray Tube: Featuring flat emitter technology for smaller focal spots (0.3, 0.6, 1.0 mm).
Heat Capacity: Anode heat storage capacity of 2.0-2.4 million heat units (MHU)
(approx. 2.5–3.375 MHU depending on configuration).
Detector Type: Amorphous silicon flat detector (available in 30x40 cm or 20x20 cm sizes).
Imaging Matrix: 2k (2480 x 1920) with 154 \(\mu \)m pixel size.
Generator Power: 15 kW, 40 kW, or 80 kW.
C-Arm Movements: Motorized, with up to 55 programmable positions.

System Details & Features
System DOM: 2013-08
System Software: VC21C
Syngo SW: VX91C
IVS & IAS Model: BB2
Generator: Polydoros A100
FD Type: Pixium 4700 (30cm x 40cm)
C-Positioner: Floor XA
Tube Type: MEGALIX Cat Plus 125/20/40/80-122GW
Model: 10144184
YOM: 2018
Load Units: 176445 (03-2026)
Collimator: Angio AI

Permanent Licenses
CDR_ARCHIVE
DIGITAL_ZOOM
FLUORO_LOOP
GET_WORKLIST
DR_STEPPING
CARE_DPF
CARE_PROFILE
CARE_POSITION
DICOM_STORAGE
DICOM_QUERY_RETR
DSA_ACQ
QUANT_QVA
FILM_PAPER_PRINTER
FILM_VHS
DR_DYNA
3D_ACqu_Artis
SYNGO_GENERAL_LICENSE
MR_Support_i
CARE_MONITOR
