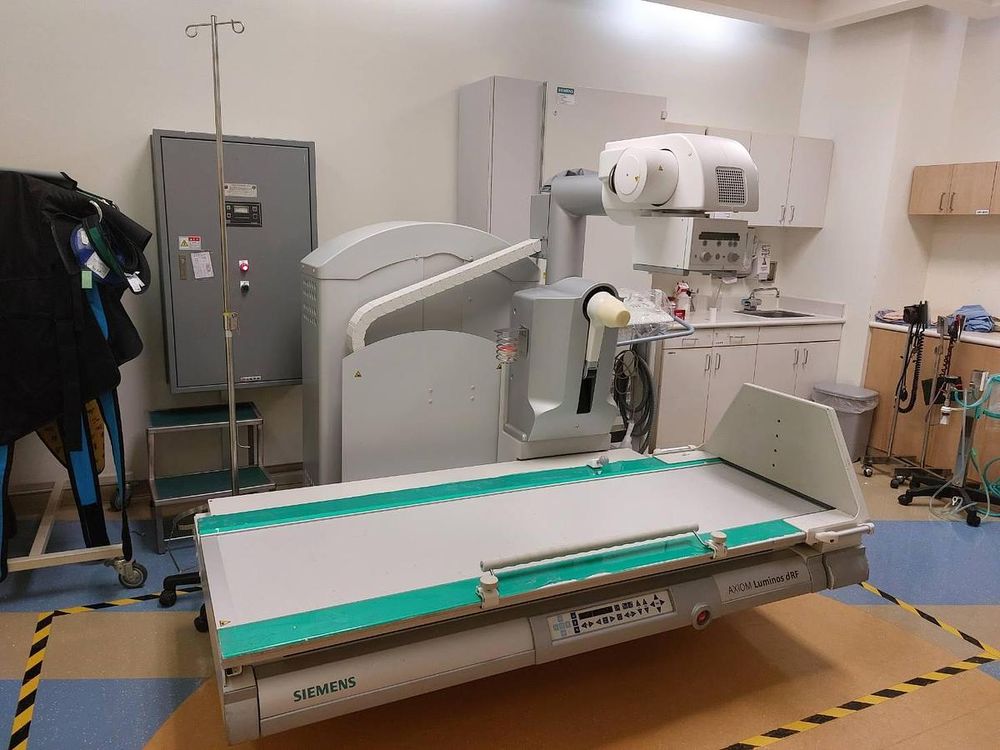

Siemens Axiom Luminos dRF

The Siemens Axiom Luminos dRF is a premium 2-in-1
remote-controlled medical imaging system that integrates digital fluoroscopy
and high-resolution radiography into a single unit.
Manufactured by Siemens Healthineers, it optimizes clinical workflows and
saves space by acting as a true dual-use system.
This prevents the financial underutilization often associated with dedicated,
single-purpose fluoroscopy machines.

Key Clinical Capabilities
Dynamic Flat-Panel Detector: Utilizes a large \(43 \text{ cm} \times 43 \text{ cm}\)
digital flat detector to capture clear, distortion-free images for both static X-rays
and dynamic fluoroscopic views.
Remote Control Operation: Allows technologists to operate the generator,
table movements, and tube assembly from a separate shielded console,
minimizing occupational radiation exposure.
Comprehensive Exam Range: Supports general radiography, gastrointestinal studies,
angiography, and specialized pediatric examinations.

Ergonomics and Patient Safety
Low Table Height: Features an adjustable table that lowers down to 48 cm,
streamlining transfers for wheelchair, heavy, or disabled patients.
Dose Reduction Technology: Employs Siemens' CARE
(Combined Applications to Reduce Exposure) programs, which include features
like radiation-free collimation and positioning to protect patients.
Human Touch Design: Blends intuitive software controls with smooth,
pre-programmed mechanical movements to elevate patient comfort during positioning changes.


System Details & Features
System DOM: April 2015
Tube: OPTITOP 150/40/80HC-100 (Model: 03345209)
BIOS Software: V4.6.4.0 R1.21.0.SR3
Collimator: AL02 (Model:10092614)
