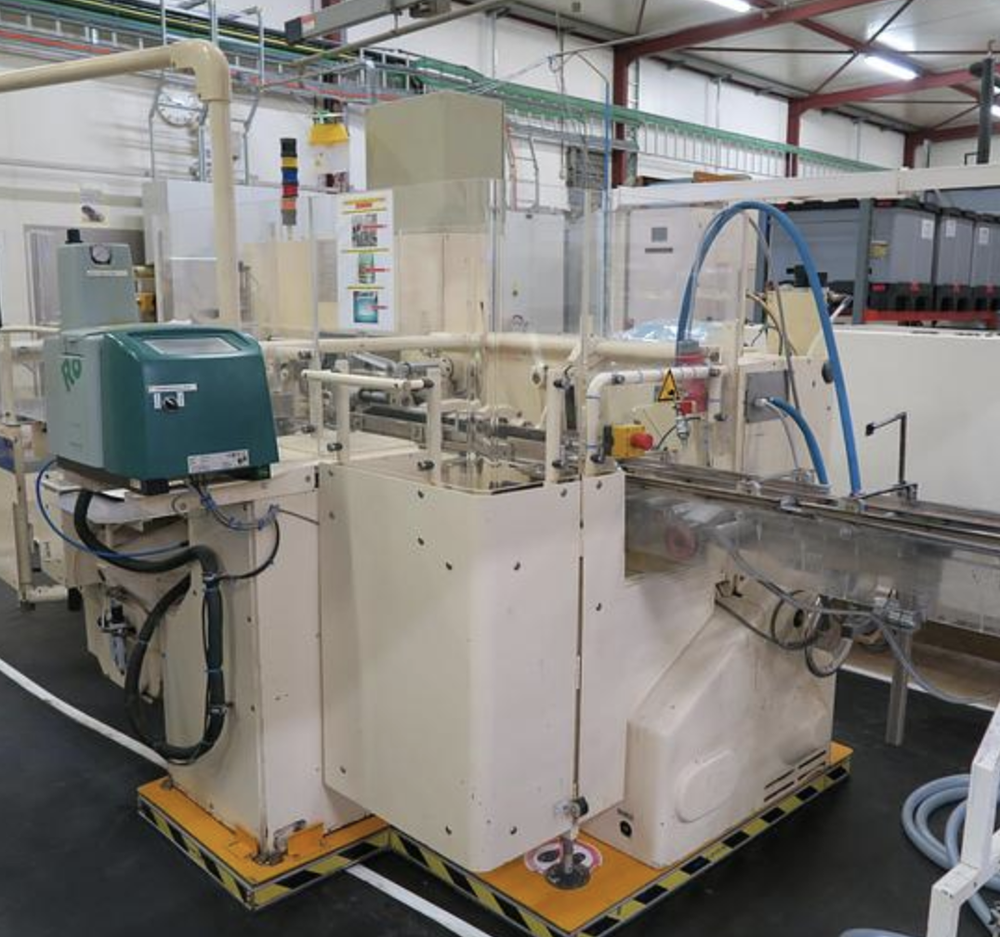

Sig DSN CHOCOLATE BAR WRAPPER
EUROPE (Western and Northern)

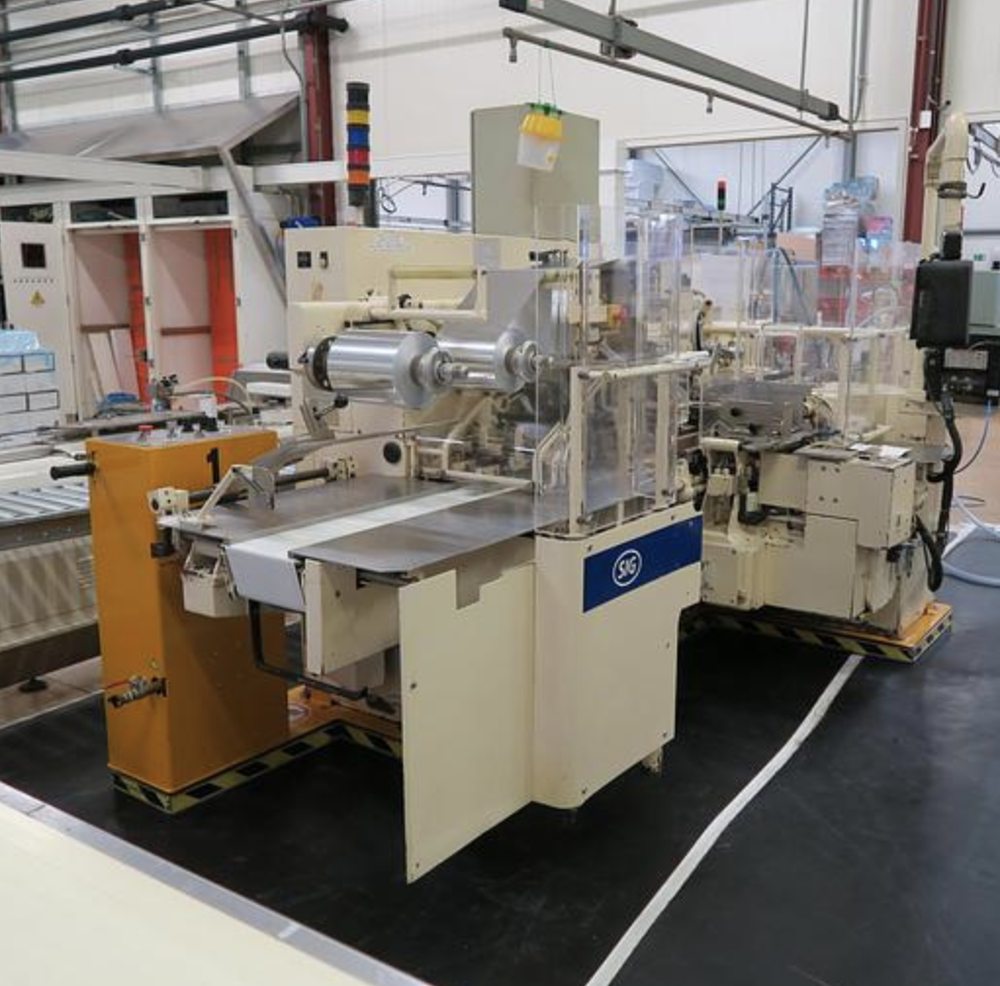

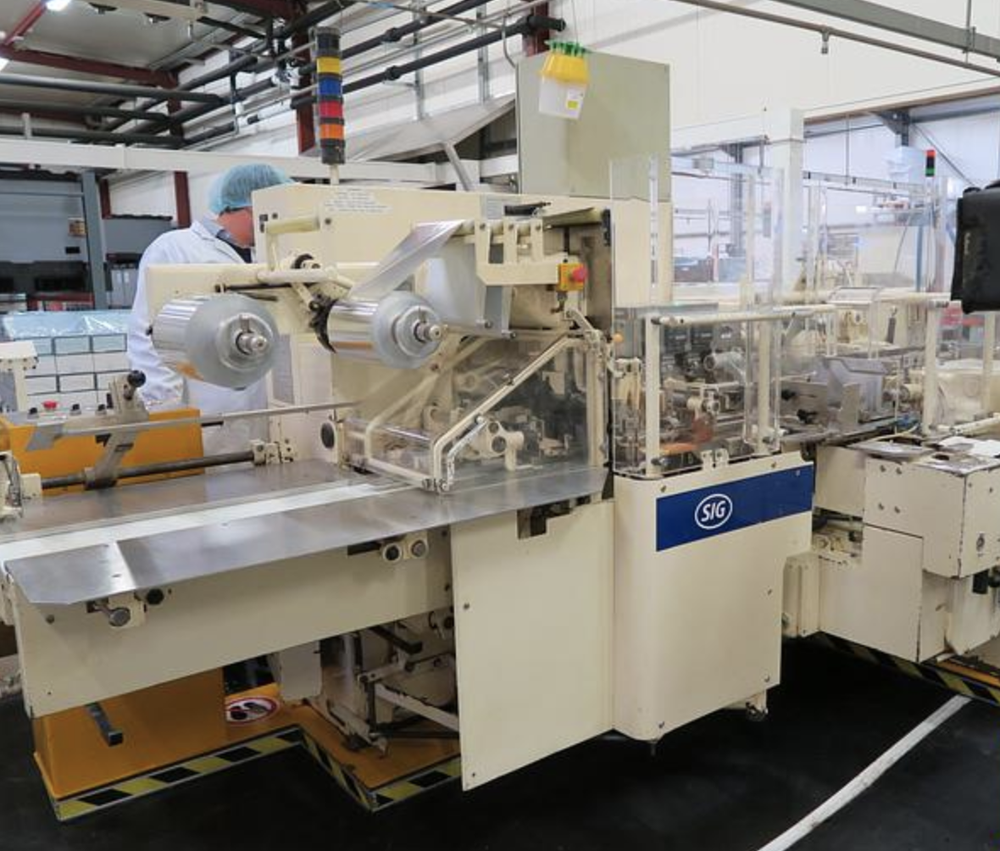

SIG DSN CHOCOLATE BAR WRAPPER
Last production early 2024
Was doing a Foil and Label, or Foil & Cardboard Outer Wrap (parts included for foil/cardboard outer).

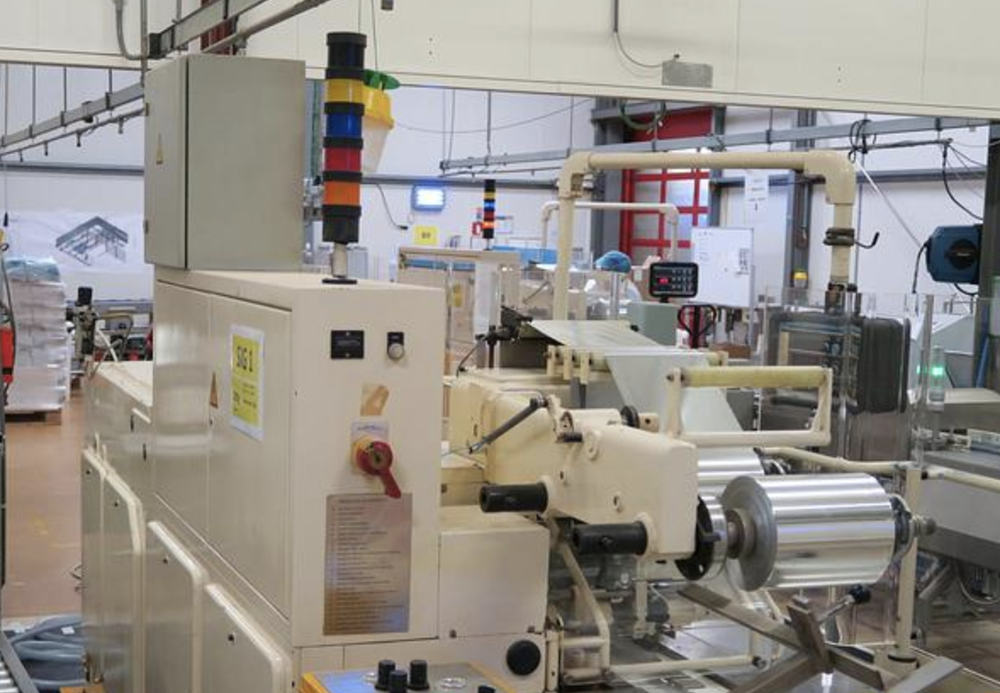

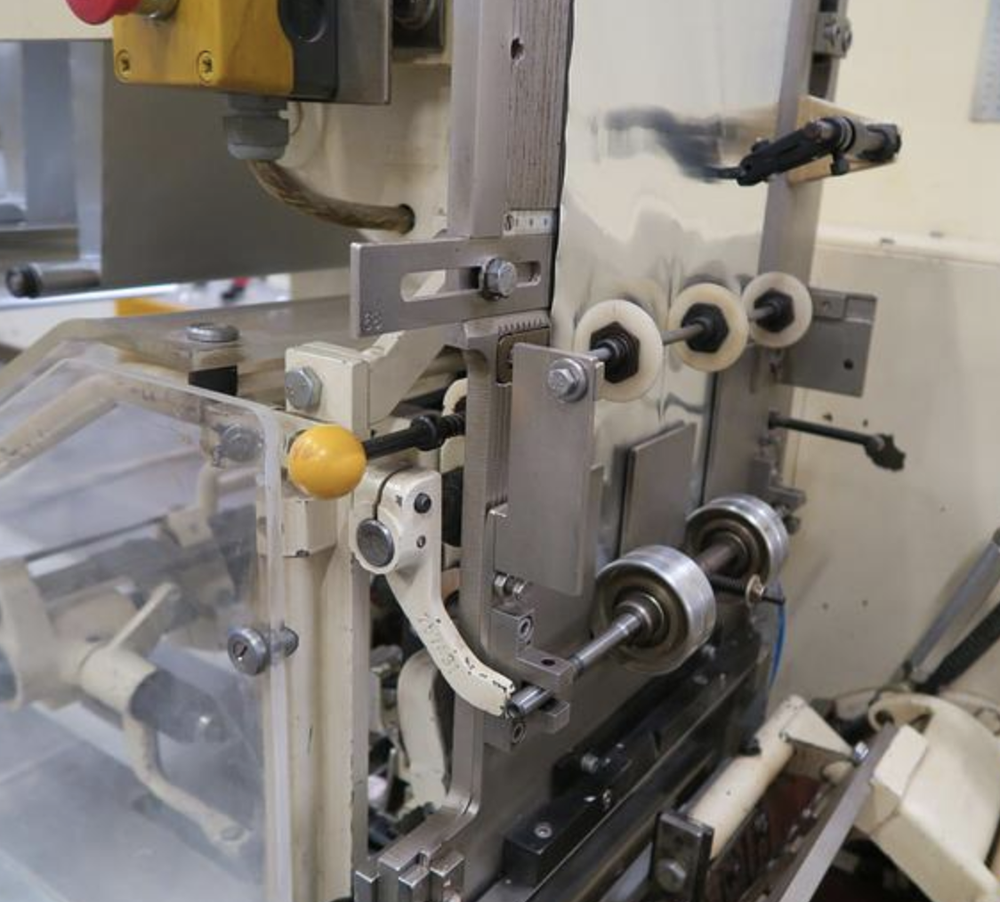

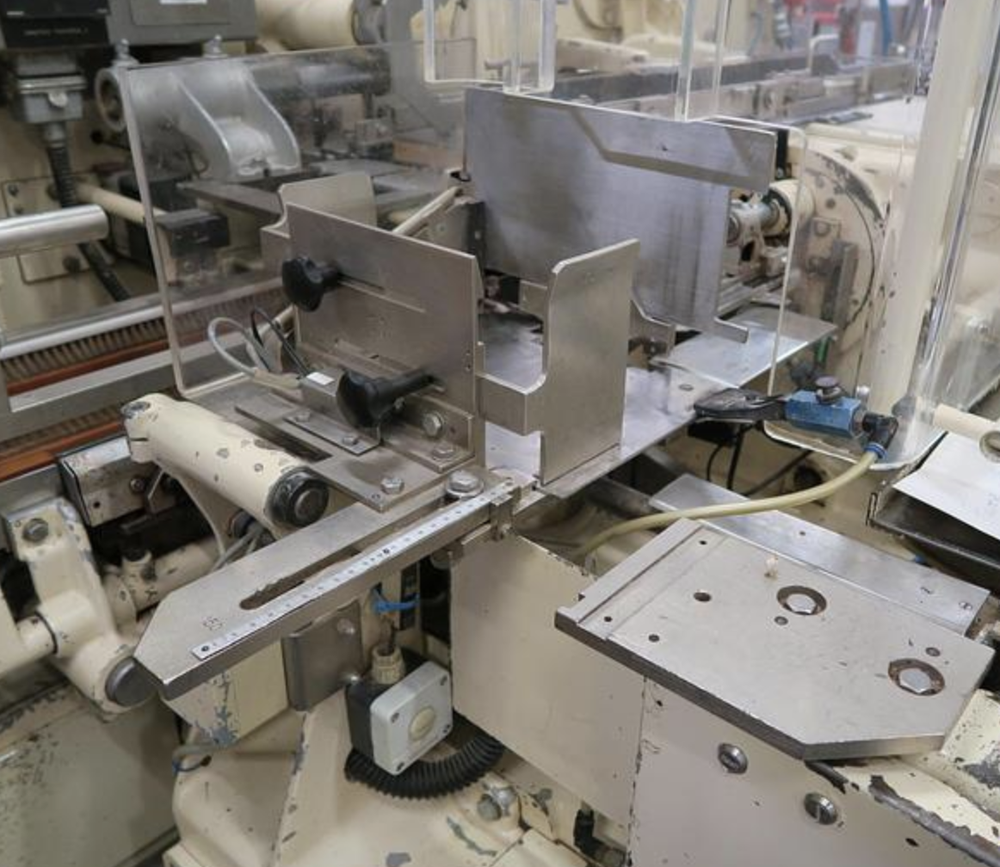

Foil fed from reel, label or cardboard outer from a stack.
Foil is also heat sealed before outer wrap of label or cardboard.
nominal capacity at around 120/130 bars per minute.
Including a ROBOTECH Concept B5/2 Glue unit for the outer label or cardboard, Year 2013
Machine includes parts for 100grammes Foil & Cardboard Outer Bar parts. 100g bar dimensions : Length 188 x width 96 x height +/-6mm depending inclusions
*Optionally available for an extra price, parts for 150/180/200grammes Foil & Label Bars.
Dimensions: Length 188 x width 96 x height 10.85mm (Height depending on the weight, but format parts are the same for 150 – 180 and 200g)

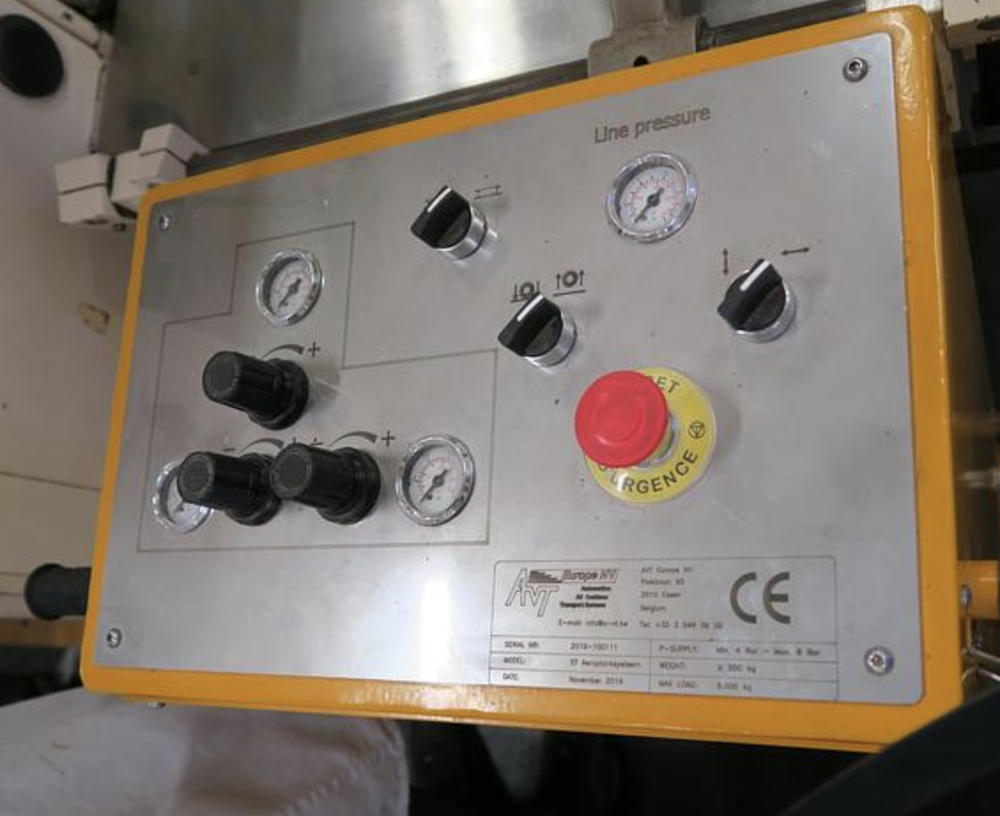

Machine is mounted on an Air Cushion Transport System
