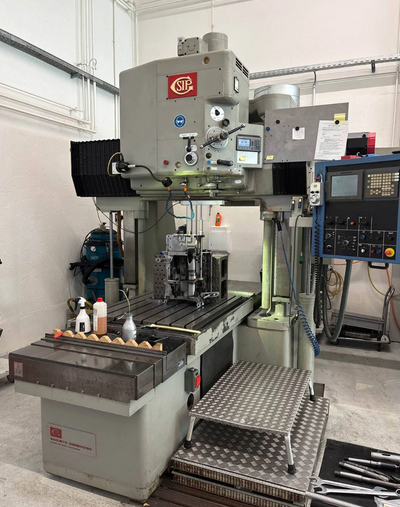

SIP 600 135 mm 2000 rpm

X-axis travel 1000 mm
Y-axis travel 700 mm
Z-axis travel 300 mm
Control FANUC 21i-M
Table size 1100 x 842 mm
T-slot width 16 mm
Table load capacity 1500 kg
Spindle diameter 135 mm
Spindle taper MT4
Spindle speed range 40–2000 rpm
Feed rate range 1–6000 mm/min
Spindle slide 0.04–0.35 mm/rev
Distance between columns 1100 mm
Spindle to table distance 1000 mm
Voltage 380 V 50 Hz
Spindle motor power 5.9 kW
Total power required 12 kVA
Machine weight 10000 kg
Machine dimensions 2930 x 3480 x 3235 mm

Set of toolholders
