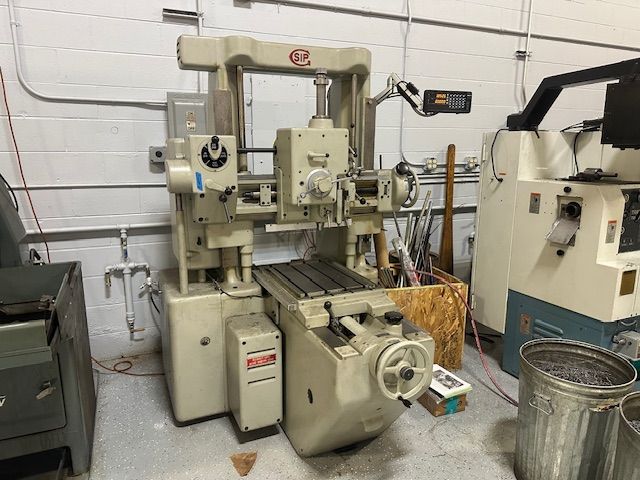

SIP MP-3K 2000 RPM

Table Working Surface 20.5 x 15 Inch
Longitudinal Travel of Work Table 18 Inch
Transverse Travel of Spindle Saddle 14 Inch
Maximum Distance from Table Top to Spindle End 24.5 Inch
Free Space Between Uprights 23.5 Inch
Spindle Internal Taper Morse 2
Spindle External Taper Special Taper SIP 2E
Spindle Speeds 75, 125, 210, 340, 480, 770, 1250, 2000 RPM
Power Feeds 0.0008, 0.0016, 0.0025, 0.0035, 0.005, 0.007 Inch
Drilling Capacity in Cast Iron 1 Inch
Boring Capacity 4 Inch
Spindle Quill Travel 6 Inch
Travel of Vertical Slide 15.375 Inch
Overall Size 60 L-R x 69 F-B x 82 H Inch on 3 Inch Blocks
Weight Approx. 4000 Lbs
Magnescale 2-Axis Digital Readout
Glass Scales
Wired for 3 Phase, 60 Cycle, 220 Volts
