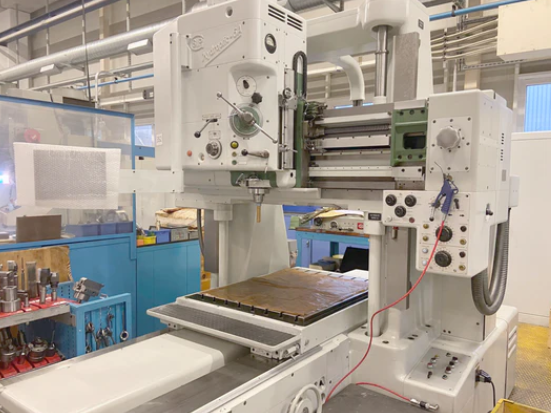

SIP HYDROPTIC 6A 2000 rpm (18 steps)

X-Axis Travel: 1000 mm
Y-Axis Travel: 795 mm
Z-Axis Travel: 800 mm
Table Length: 1100 mm
Table Width: 842 mm
Table Load: 800 kg
Spindle Stroke (Z Axis): 250 mm
Drilling Capacity in Steel: 55 mm
Maximum Bore Diameter: 300 mm
Spindle Taper: MT 4
Spindle Speed Range: 40 – 2000 rpm (18 steps)
Table Feed: up to 300 mm/min
Rapid Traverse (Table Longitudinal): 2500 mm/min
Rapid Traverse (Table Transversal): 2500 mm/min
Distance Between Columns: 1100 mm
Distance Spindle to Table: 900 mm
Spindle Motor: 4 CV
Total Power: 8 CV
Voltage: 380 V / 50 Hz / 3 Phase
Machine Weight: 7500 kg
Machine Dimensions: 3220 x 2335 x 3205 mm
Accessories:
HEIDENHAIN DRO
Boring head set
Centering device
Screen
Slideways reshaped
Refurbished 2020
