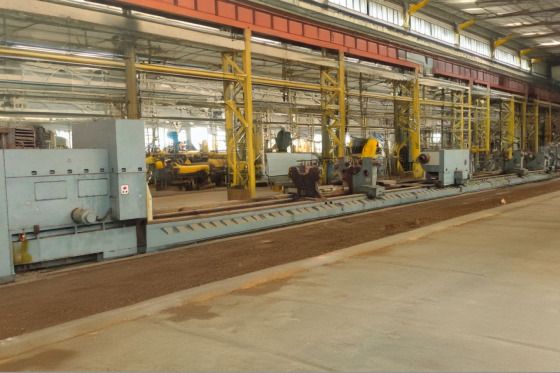

Skoda Engine Lathe 180 rpm SUT 200 TD

Ref : 2781048-3-GO

Condition : Used

Manufacturer : Skoda

Type : Engine Lathe

Spindle Speed : 180 rpm

Model : SUT 200 TD

Year(s) : 1984

Quantity : 1

Location : Seller or machines location:
EUROPE (Western and Northern)

Distance between centers: 35000 mm
Swing over bed: 2000 mm
Swing over cross slide: 1600 mm
Spindle power: 75 kW
Spindle speed: 180 rpm
Torque on chuck: 160000 Nm
Minimum turning diameter: 315 mm
Bed width: 1600 mm
Tailstock spindle diameter: 400 mm
Tailstock quill stroke: 250 mm
Feed rate X-axis: 5000 mm/min
Feed rate Z-axis: 5000 mm/min
Max workpiece load: 63000 kg
Tandem construction on one bed with left and right headstock
Mirror double tailstock left and right
Motorized tailstock left and right
Double carriage
3 bed way construction
Steady rest included
Roller rest included
Operator panel with scales requires attention and replacement
Machine length: 42000 mm
Machine width: 3250 mm
Machine height: 3250 mm
Machine weight: 158000 kg
