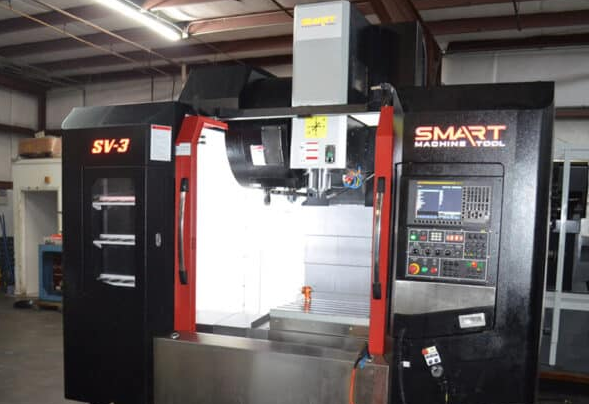

Smart Machine Tool SV-3 3 Axis

Smart Machine Tool SV-3
Year: 2022

Table size: 49.21” x 23.62”
Table load capacity: 2,205 lbs
X travel: 43.31”
Y travel: 24.62”
Z travel: 23.62”
Distance from table top to spindle nose: 5.91” – 29.53”
Distance from column to spindle center: 25.59”
Spindle taper: CAT40 (BIG PLUS)
Spindle speed: 10,000 RPM
Spindle horsepower: 20/25 HP
Spindle torque: 94 ft-lbs (30 min)
Rapids (XYZ): 1417 IPM
Cutting feedrate: 394 IPM
Magazine capacity: 30 tools
Floor space (L x W x H): 156” x 93” (Including chip conveyor)
Fanuc system 0i-MF CNC control
30 tool double arm ATC
Full enclosed splash guard
Coolant bed flush
Rigid tapping
Big Plus spindle
Manual Guide i
Lift up conveyor
Renishaw receiver and GUI software
CTS prep
4 axis prep
Renishaw probe and tool setter
High speed machining, 200 look ahead
Smart Model CNC-250R rotary table
290 PSI coolant thru spindle
Purchased and installed new in 2022
