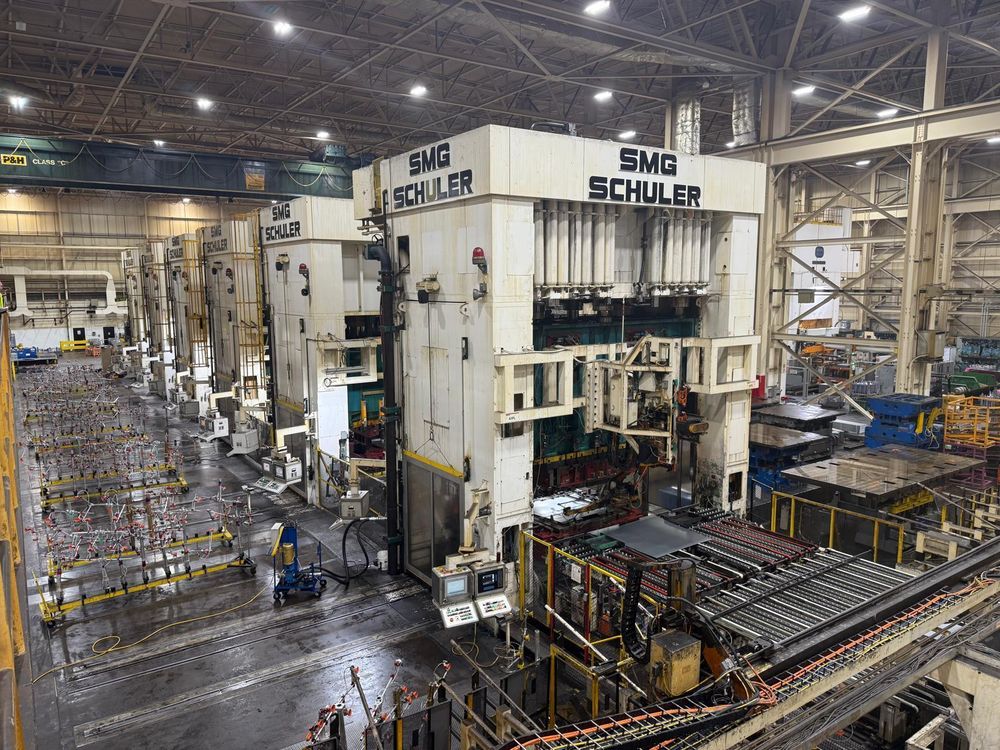

SMG HZPUI-T 3000/1800-5400/2450 Tandem Line

Press 1:
Total force: 30000 kN
Slide force: 12000 kN
Slide pull back force: 1900 kN
Slide stroke: 1325 mm
Bed installation - slide in TDC: 2500 mm
Slide area (width x depth): 4600 x 1650 mm
Blankholder force: 10000 kN
Blankholder stroke: 1070 mm
Bed installation - blankholder in TDC: 2245 mm
Blankholder area (width x depth): 5400 x 2450 mm
Clear distance between uprights left to right: 4600 mm
Clear distance between guides front to back: 2500 mm
Bed area (width x depth): 5400 x 2450 mm
Bed cushion displacement force: 4050 kN
Bed cushion ejection force: 4050 kN
Bed cushion stroke: 300 mm
Bed cushion area (width x depth): 3900 x 1760 mm
Drive capacity: 4 x 160 kW
Pump capacity: 4 x 560 l/min, 1200 rpm
Rapid closing speed (down/up): 500 / 470 mm/s
Max. working speed / speed at max. pressure: 53 / 32 mm/s
Eccentric load slide left to right: 1350 kNm
Eccentric load slide front to back: 675 kNm
Eccentric load slide + blankholder left to right: 2250 kNm
Eccentric load slide + blankholder front to back: 1125 kNm
Moving bolster travel speed: 7500 mm/min
Moving bolster length of travel: 7500 mm
Weight: 417125 kg
Oil quantity one container filling: 8600 l
Operating voltage (threephase): 460 V
Operating voltage (AC): 110 V
Valve voltage (DC): 24 V
Lamp voltage (DC): 110 V
Frequency: 60 Hz

Press 2:
Total force: 18000 kN
Slide force: 18000 kN
Slide pull back force: 1900 kN
Slide stroke: 1100 mm
Bed installation - slide in TDC: 2275 mm
Slide area (width x depth): 5400 x 2450 mm
Bed cushion displacement force: 4100 kN
Bed cushion ejector force: 500 kN
Bed cushion stroke: 300 mm
Bed cushion area (width x depth): 3900 x 1760 mm
Drive capacity: 4 x 160 kW
Pump capacity: 4 x 560/1200 l/min, rpm
Rapid closing speed (down/up): 400 / 400 mm/s
Max. working speed / speed at max. pressure: 53 / 32 mm/s

Press 3-6:
Total force: 13500 kN
Slide force: 13500 kN
Slide pull back force: 1140 kN
Slide stroke: 1100 mm
Bed installation - slide in TDC: 2275 mm
Slide area (width x depth): 5400 x 2450 mm
Bed cushion displacement force: 4100 kN
Bed cushion ejector force: 500 kN
Bed cushion stroke: 300 mm
Bed cushion area (width x depth): 3900 x 1760 mm
Drive capacity: 3 x 160 kW
Pump capacity: 3 x 560/1200 l/min, rpm
Rapid closing speed (down/up): 400 / 400 mm/s
Max. working speed / speed at max. pressure: 53 / 32 mm/s

Accessory Equipment:
Thermostatically controlled oil cooling
Centralized lubrication with motor pump
Slide locking at TDC with mechanical indication
Parallelism control for the slide
Mechanical stroke limitation for the slide, adjustable by motor
Adjustment range 550 mm
Hydraulic damping, damping stroke 25 mm
SMG Numeric control D1 with screen
Overtravel monitoring equipment
Safety guard left and right side, movable by motor, secured by limit switches
2 bolsters movable left and right side equipped with separate drive
Each bolster designed for max. die weight of 68 t
