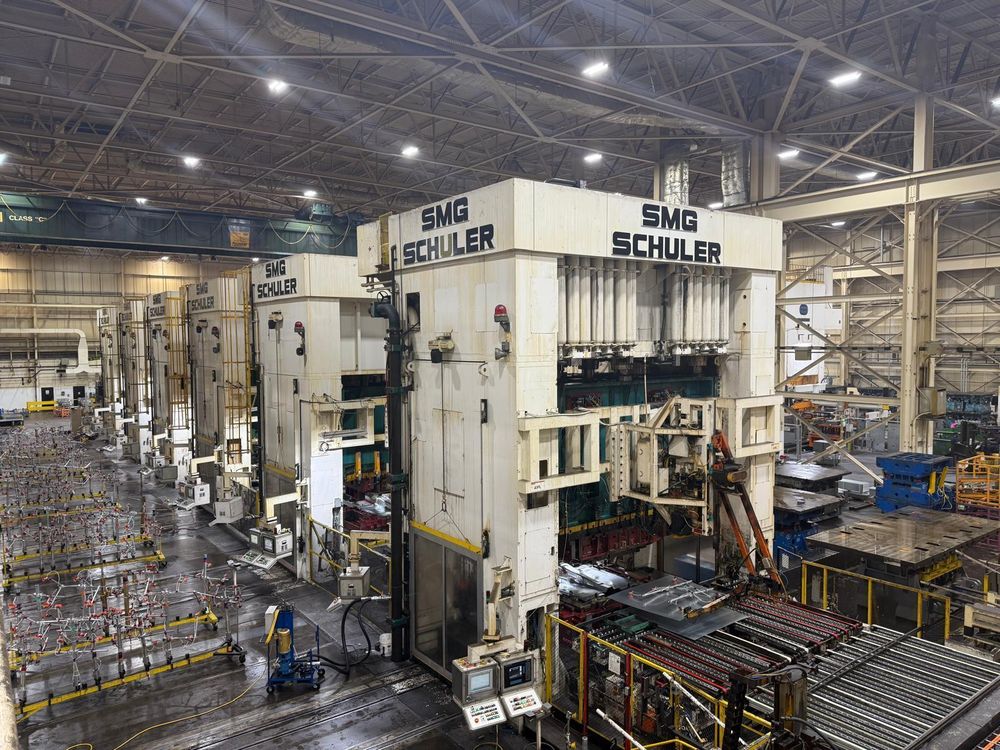

Schuler, SMG HZPU-T 1350-5400/2450 13,500 kN

Total force 13,500 kN
Slide force 13,500 kN
Slide pull back force 1,140 kN
Slide stroke 1,100 mm
Bed installation - slide in TDC 2,275 mm
Slide area (width x depth) 5,400 x 2,450 mm
Bed cushion displacement force 4,100 kN
Bed cushion ejector force 500 kN
Bed cushion stroke 300 mm
Bed cushion area (width x depth) 3,900 x 1,760 mm
Drive capacity 3 x 160 kW
Pump capacity 3 x 560/1,200 l/min, rpm
Rapid closing speed (down/up) 400/400 mm/s
Max. working speed / speed at max. pressure 53/32 mm/s
