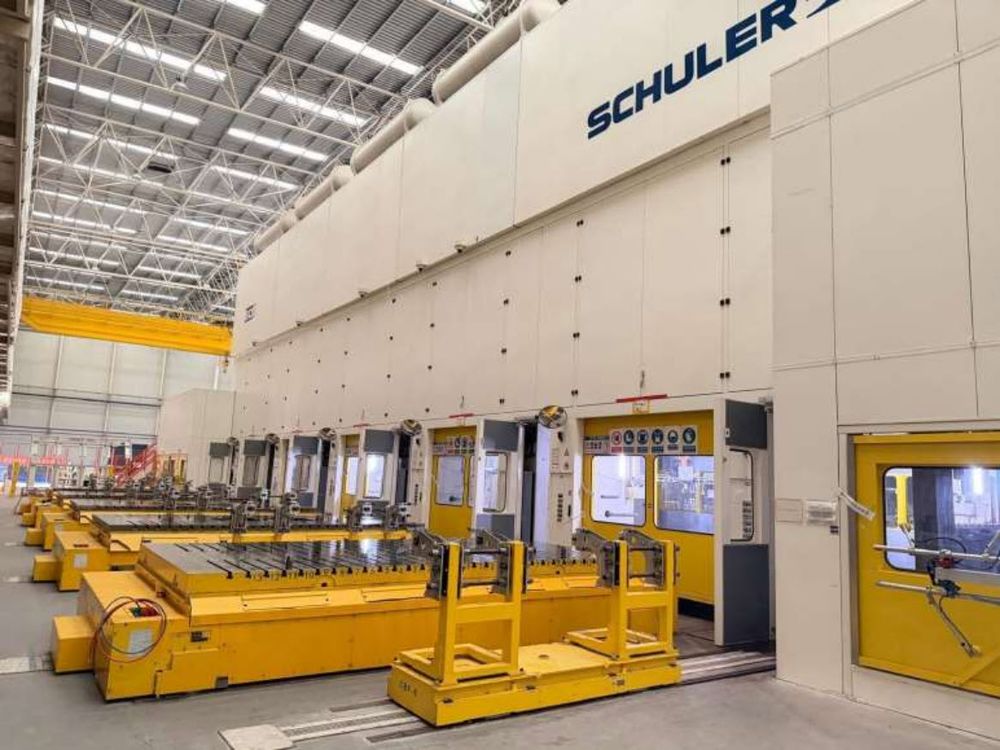

Schuler SSL4-2500-5.0X2.5-1300 / SSL4-1200-5.0x2.5-1300 2,755 tons / 25,000 kN

Press force 2,755 tons / 25,000 kN
Stroke 51.18" / 1300 mm
Die mounting height 42.13" to 63" / 1070 to 1600 mm
Bed area 196.85" x 98.43" / 5000 x 2500 mm
Ram / slide area 196.85" x 98.43" / 5000 x 2500 mm
Distance between uprights 200.79" x 104.33" / 5100 x 2650 mm
Speeds 3-17 SPM
Cushion capacity 550 tons / 5000 kN
Cushion stroke 0.79" to 13.78" / 20-350 mm
Main electric motors (4) 523 HP / 390 kW
Total weight 1,565,282 lbs / 710,000 kg
Equipped with Schuler "ServoDirect" technology
Fully programmable slide curves (Pendulum mode, Link motion simulation, etc.)
4-point hydraulic drawing cushion
Rolling bolster system
Hydraulic overload protection
Automatic ram adjustment & clamping
Automatic counterbalance system
