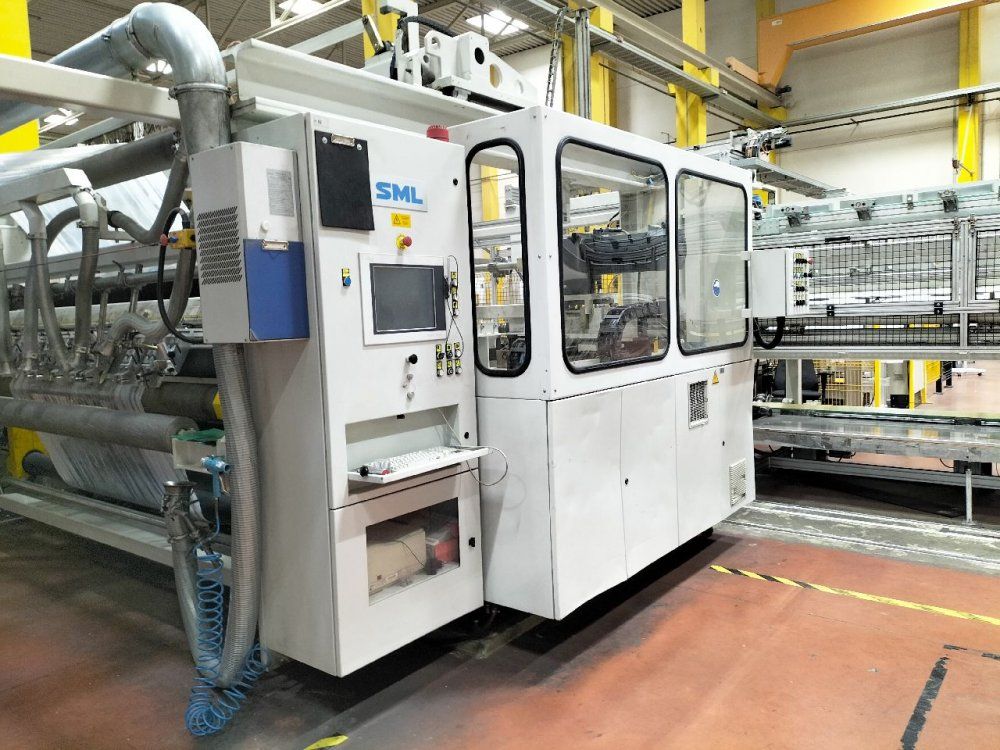

SML CAST COEX 5

Number of layers 5
Overhaul/renovation yes, recent revamp to part of controls
Film structure ABCDE
Material Stretch film LLDPE
Film width (mm) 2500
Speed (m/min) Mech speed 600 mpm- net speed at rewinder 550 mpm
Output (Kg/h) Nominal capacity 3400 kg /h
Max net capacity at rewinder 2300 kg/h .

Extruder 1 Layer ref: A
Screw diam 1 90mm
Description 1 Gravimetric dosing units Doteco 2Comp.

Extruder 2 Layer ref: B
Screw diam 2 120mm
Description 2 Gravimetric dosing units Doteco 4 Comp.AC motor,
hydraulic screen changer

Extruder 3 Layer ref: C
Screw diam 3 120mm
Description 3 Gravimetric dosing units Doteco 4 Comp. AC motor,
hydraulic screen changer

Extruder 4 Layer ref: D
Screw diam 4 120mm
Description 4 Gravimetric dosing units Doteco 3 Comp.AC motor,
hydraulic screen changer

Extruder 5 Layer ref: E
Screw diam 5 90mm
Description 5 Gravimetric dosing units Doteco 2 Comp.AC motor,
hydraulic screen changer

Head description Automatic Die head with Internal deckling,
Eltex edge pinning,
Die width (mm) Gross width 3100 - 2100 mm
Chill roll unit Double chill roller
Thickness controll system Yes
Web guide Oscillating frame
Rewinder description Turret rewinder for machine reels and jumbo
Note Regrinder for edges and Erema Regranulator 3 Kongskilde exhaust
for edge trims EREMA recycling regranulation unit Additional extruder.
8 for recycled material supplied by Erema unit .
Provision for edge encapsulation .
Complete end of the line rolls handling and palletizing

Cast film extrusion lines are commonly used to
extrude plastic films especially for flexible packaging industry.
In a cast film extruder PE, PP or PA granulates (or other polymers)
are melted inro an extruder and pushed through a flat extrusion die (T die),
extruding a sheet of molten polymer onto a cooled roller (chill roll).
