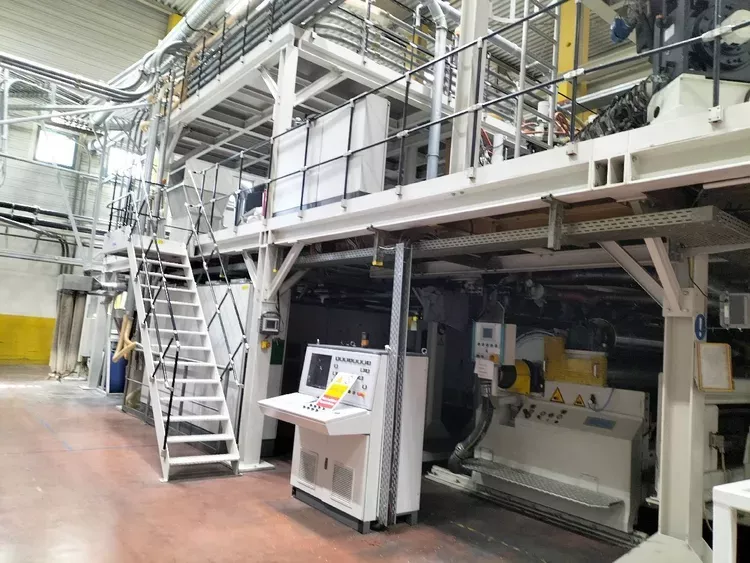

SML Cast Coex 7

Film extrusion lines - Cast film - CA258
Description of the Machine and Accessories
Manufacturer: SML
Model: CAST COEX 7
Year: 2008
Number of layers: 7
Material: Stretch film LLDPE
Film width (mm): 2500
Output (Kg/h): Max net film output 1,890 kg/hour at 23 micron thick film.
Less out put on thinner films

Extruder 1 Layer ref: : A
Screw diam 1: 75mm
Description 1: Gravimetric dosing units 4 components make Doteco,
hydraulic screen
changer. AC motors

Extruder 2 Layer ref: : B
Screw diam 2: 75mm
Description 2: Gravimetric dosing units 4 components make Doteco,
hydraulic screen
changer. AC motors

Extruder 3 Layer ref: : C
Screw diam 3: 75mm
Description 3: Gravimetric dosing units 4 components make Doteco,
hydraulic screen
changer. AC motors

Extruder 4 Layer ref: : D
Screw diam 4: 90mm
Description 4: Gravimetric dosing units 4 components make Doteco,
hydraulic screen
changer. AC motors

Extruder 5 Layer ref: : E
Screw diam 5: 75mm
Description 5: Gravimetric dosing units 4 components make Doteco,
hydraulic screen
changer. AC motors

Extruder 6 Layer ref: : F
Screw diam 6: 75mm
Description 6: Gravimetric dosing units 4components make Doteco,
hydraulic screen
changer. AC motors

Extruder 7 Layer ref: : G
Screw diam 7: 75mm
Description 7: Gravimetric dosing units 4 components make Doteco,
hydraulic screen
changer. AC motors

Extruder 8 layer ref: encapsulation extruder
screw diameter 45mm

die Head description: Automatic thickness profile control via thermal bolts.
Internal deckling system,
Die and feedblock by Cloeren
Die width (mm): 3100 mm with Internal deckling

Chill roll unit: Double chill roller
Thickness control system: Automatic thickness control system. double thickness gauge
type with beta rays by Electronic System.

Web guide: Oscillating frame

Rewinder max reel diameter (mm): max single reel weight 80 Kg
Rewinder description: Winder for machine rolls

Additional Information:
Nominal capacity 4600 kg /h
Max net capacity at rewinder 2750 kg/h
Thickness range 12- 70 micron
Complete recycling system including :
3 Kongskilde exhaust for edge trims
EREMA recycling regranulation unit
Additional extruder. 8 for recycled material supplied by Erema unit .
Provision for edge encapsulation .
Complete end of the line rolls handling and palletizing
