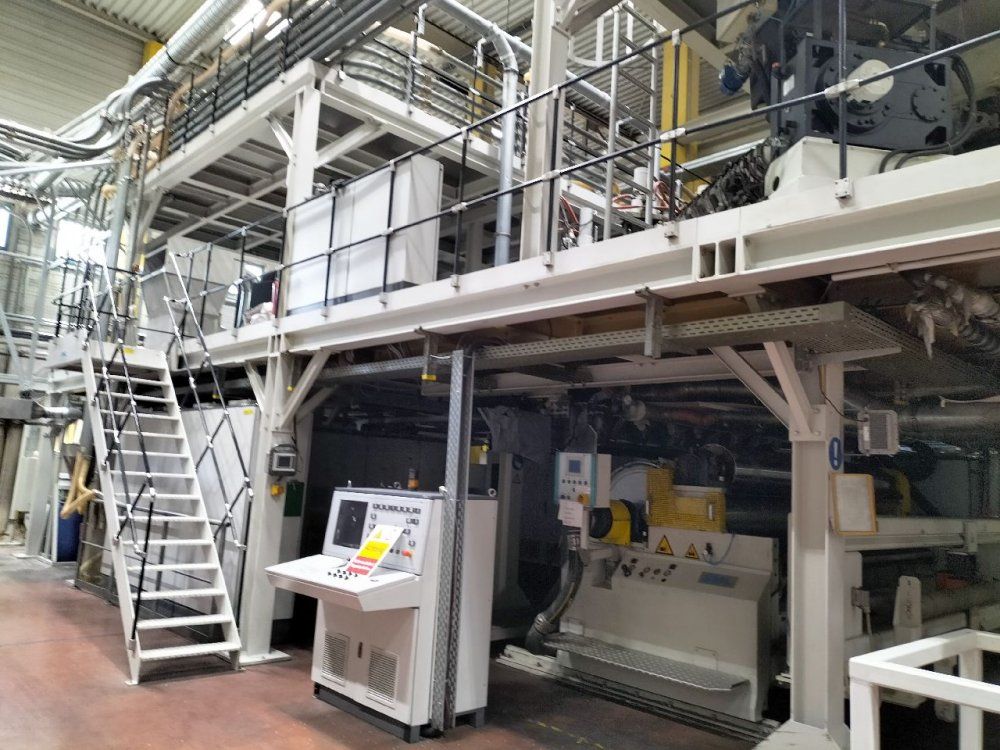

SML Cast Coex 7

Number of layers 7
Material Stretch film LLDPE
Film width (mm) 2500

Extruder 1 Layer ref: A
Screw diam 1 75
Description 1 Gravimetric dosing units

Extruder 2 Layer ref: B
Screw diam 2 75
Description 2 Gravimetric dosing units

Extruder 3 Layer ref: C
Screw diam 3 75
Description 3 Gravimetric dosing units

Extruder 4 Layer ref: D
Screw diam 4 90
Description 4 Gravimetric dosing units

Extruder 5 Layer ref: E
Screw diam 5 75
Description 5 Gravimetric dosing units

Extruder 6 Layer ref: F
Screw diam 6 75
Description 6 Gravimetric dosing units

Extruder 7 Layer ref: G
Screw diam 7 75
Description 7 Gravimetric dosing units

Head description Automatic die head with Internal Deckling
Die width (mm) 2500
Chill roll unit Double chill roller
Thickness controll system yes Beta ray
Rewinder max reel diameter (mm) 350
Rewinder description Turret two shafts for Machine rolls
Note 3 Kongskilde Grinders for edge trims
EREMA recycling regranulating unit
Additional extrudern. 8 for recycled material supplied by
Erema unit

Cast film extrusion lines are commonly used to extrude plastic films
especially for flexible packaging industry. / In a cast film extruder PE,
PP or PA granulates (or other polymers) are melted inro an extruder and
pushed through a flat extrusion die (T die), extruding a sheet of
molten polymer onto a cooled roller (chill roll).
