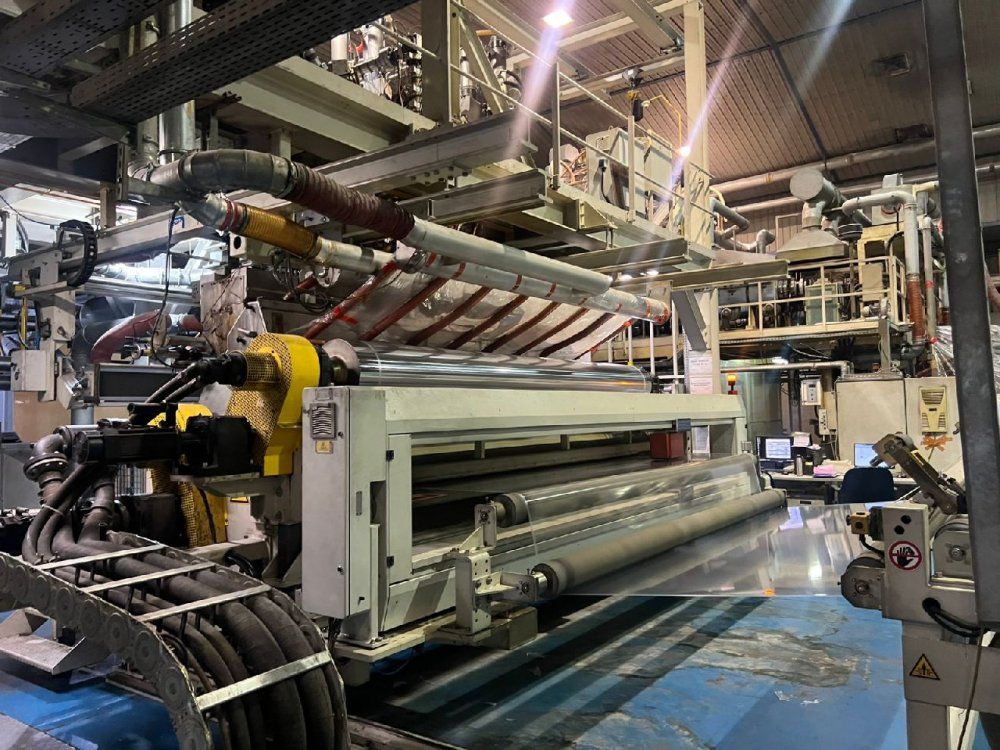

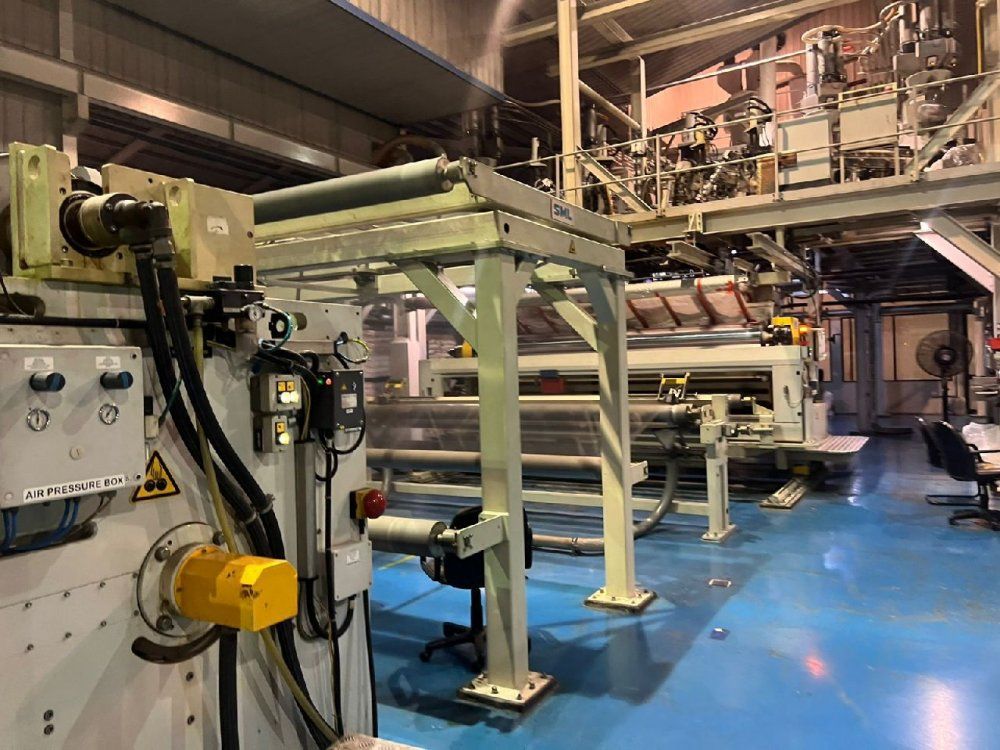

SML 5 layers Cast film machine

Number of layers 5
Film structure D/B/A/C/E 10/15/53/11/11% or 12/18/50/10/10%
Material CPP and CPE
Film width (mm) 3300
Speed (m/min) 350m/min

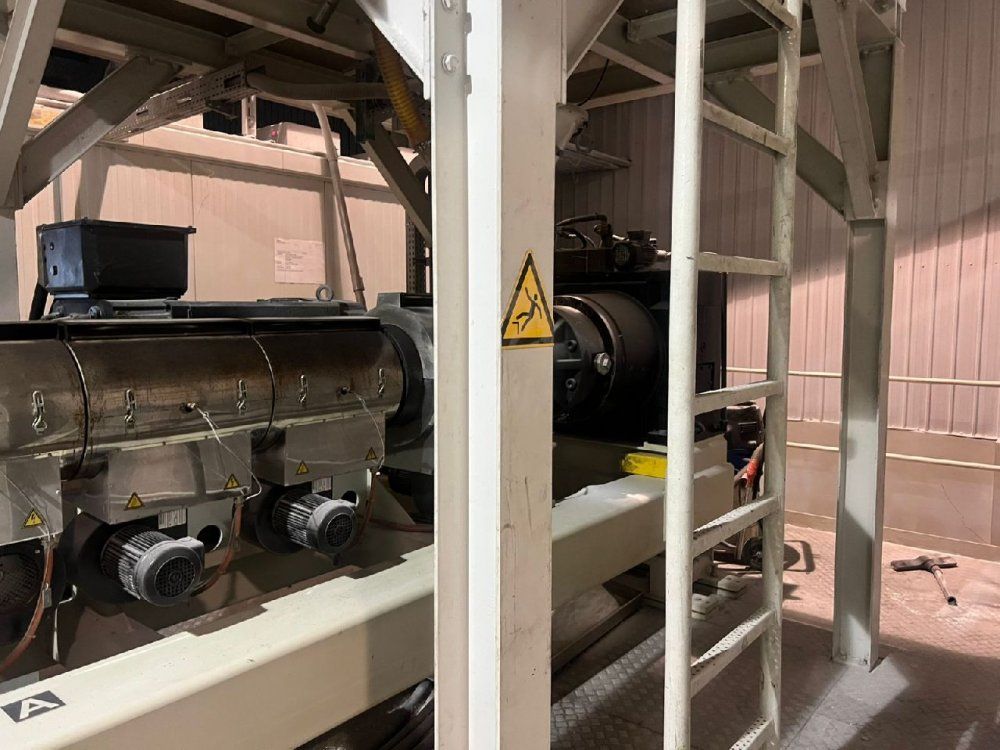

Extruder 1 Layer ref: A
Screw diam 1 150mm
Description 1 gravimetric blenders, AC motors

Extruder 2 Layer ref: B
Screw diam 2 90mm
Description 2 gravimetric blenders, AC motors

Extruder 3 Layer ref: C
Screw diam 3 75mm
Description 3 gravimetric blenders, AC motors

Extruder 4 Layer ref: D
Screw diam 4 75mm
Description 4 gravimetric blenders, AC motors

Extruder 5 Layer ref: D
Screw diam 5 75mm
Description 5 gravimetric blenders, AC motors

Die width (mm) 3800mm
Thickness controll system Electronic system
Corona treatment Yes, driven
Web guide Oscillating frame

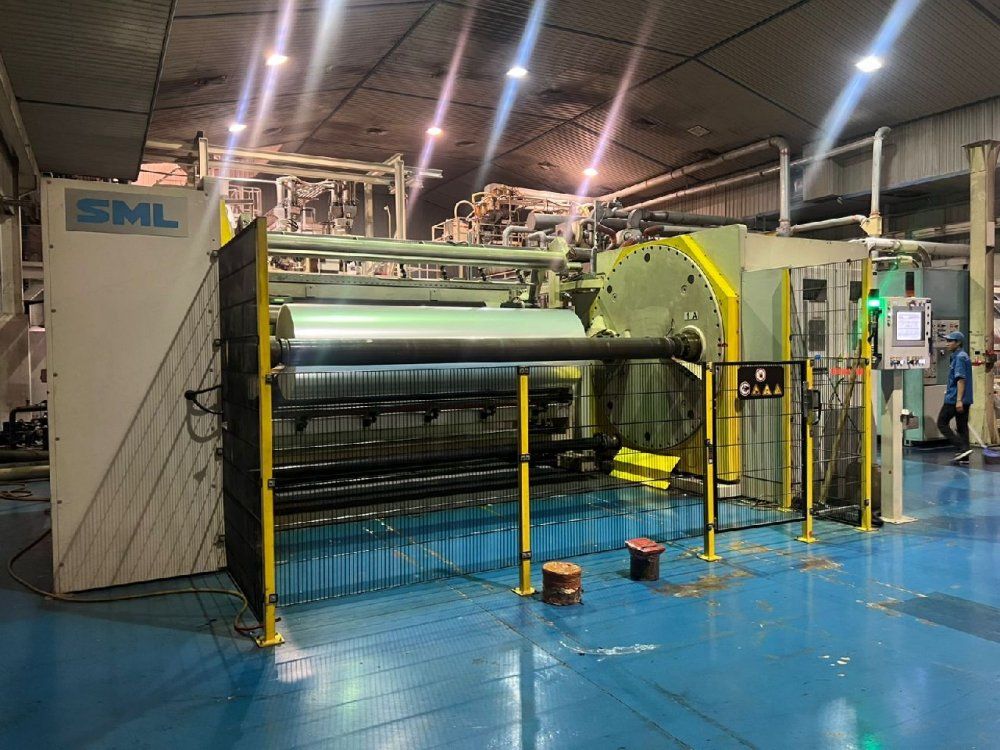

Rewinder description Turret winder

Cast film extrusion lines are commonly used to extrude plastic films
especially for flexible packaging industry. / In a cast film extruder PE,
PP or PA granulates (or other polymers) are melted inro an extruder and
pushed through a flat extrusion die (T die), extruding a sheet of
molten polymer onto a cooled roller (chill roll).
