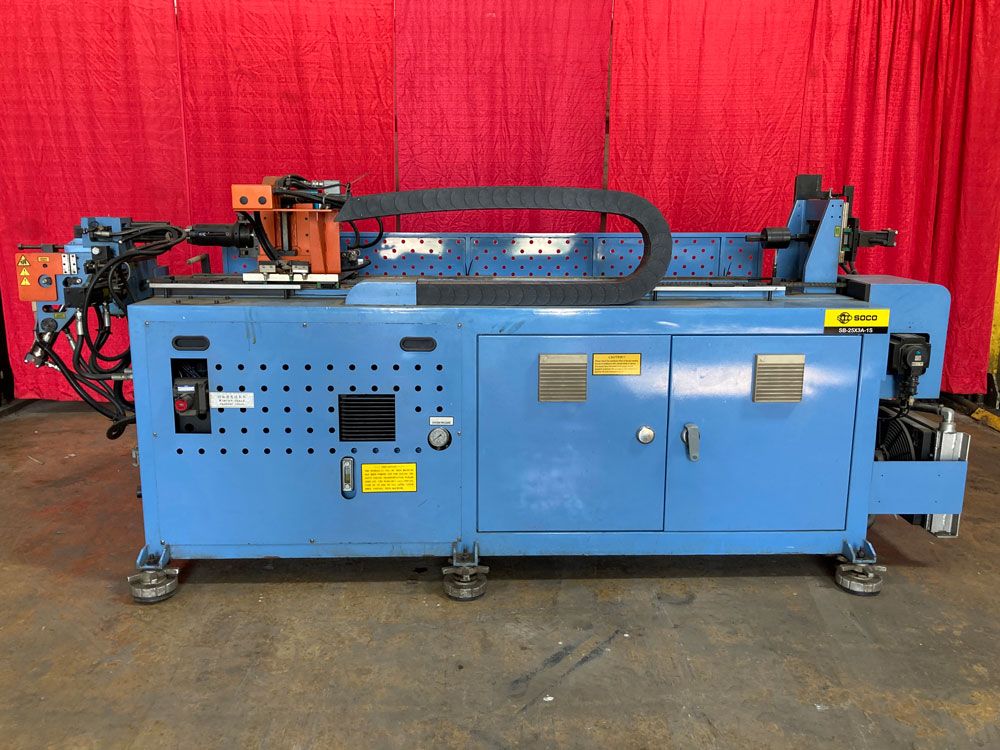

Soco SB-25X3A-1S

SOCO SB-25X3A-1S
Year: 2008

Bending speed 200 degrees/second
Plane positioning speed 300 degrees/second
Feeding speed 40 inches/second
Mandrel extraction system
Mandrel lubrication system
Pressure die assist system
Industrial PC with touch screen
Mobile push button operation stand
Miscellaneous tooling
Capacity 1.0″ OD x 0.045″ wall (1.5D CLR)
Max tube OD mild steel 0.750″ x 0.090″ (1.5D CLR)
Max tube OD stainless steel 0.750″ x 0.059″ (1.5D CLR)
Max tube length with mandrel 94″
Feed stroke 70″
Maximum bending radius 4″
Maximum bending angle 190 degrees
Main motor 5 HP
Machine weight 3,550 lbs
Machine dimensions 127″ x 42″ x 56″
