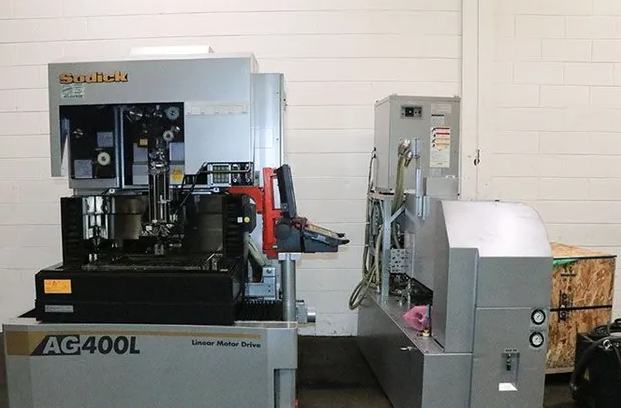

Sodick AG400L

SODICK AG400L
2012

Cutting hours 4469
Power on time 15106 hrs
CNC control LN2W/LPW400
Program input via keyboard
Program input via USB
Program input via Ethernet
Linear motor drive system
No ball screws
Glass scales
Fixed jet automatic wire threader
X-axis travel 15.75 in
Y-axis travel 11.81 in
Z-axis travel 9.87 in
U-axis travel ±4.73 in
V-axis travel ±4.73 in
Maximum workpiece size 24 in x 18 in x 9 in
Maximum workpiece weight 1102 lb
Tank dimensions 33.460 in x 24.020 in
Wire diameter range 0.002 in to 0.12 in
Maximum wire speed 420 mm/s
Dielectric fluid capacity 600 liters
Chiller included
Machine dimensions 86.68 in x 87.99 in x 86.61 in
Machine weight 8377 lb
Voltage 200V
Phase 3
Frequency 50-60 Hz
Power consumption 13 kVA
Full load amps 38 A
Separate transformer for voltage options
Deinstalled and prepared for shipment by manufacturer
Offered with start-up guarantee
Offered with 30-day return privilege
