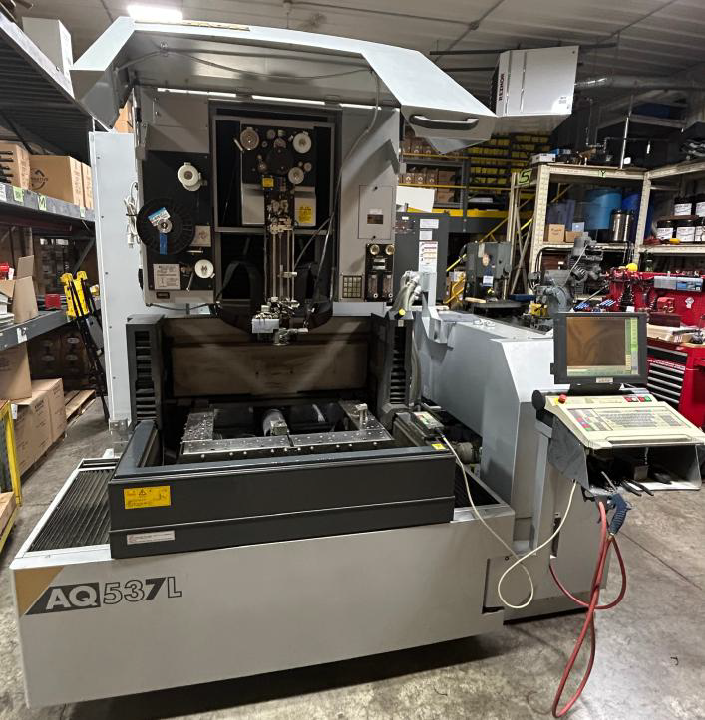

Sodick AQ537L

X-axis travel: 22.4"
Y-axis travel: 14.56"
Z-axis travel: 13.77"
U/V-axis travel: ±4.72"
Control: LN1W
Taper angle: ±25° @ 3.9"
Wire diameter: .006" - .012" (.010" guides)
Max. submerged cutting height: 11.0"
Max. workpiece dimensions: 30.3" x 20.47" x 13.7"
Max. workpiece weight: 2,200 lbs
Table size: 31.7" x 19.5"
Max. wire spool size: 22 lbs
Input power: 200-208V, 3-phase, 15 kVA
Machine weight: approx. 11,500 lbs
Machine dimensions: 139" x 145" x 91"
Includes submerged cutting
Includes drop tank
Includes automatic wire threading
Includes chiller
Includes linear drives (no ballscrews)
