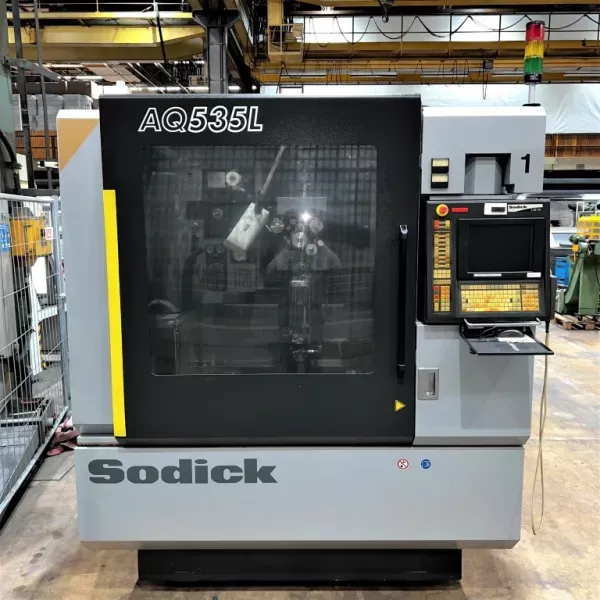

Sodick AQ535L
Ref :
2747926-3-AW
Condition :
Used
Manufacturer :
Sodick
Model :
AQ535L
Year(s) :
-
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Axis travel X/Y: 550 x 350 mm
Axis travel Z: 300 mm
Axis travel U/V: 80 x 80 mm
Work table size: 790 x 500 mm
Working container dimensions: 1100 x 720 mm
Max workpiece height: 290 mm
Max workpiece height for bath machining: 270 mm
Max workpiece weight: 800 kg
Max workpiece weight for bath machining: 680 kg
Height from floor to table top: 1005 mm
Conicity angle: 20° / 80 mm
Wire tension: 300–2300 g
Wire running speed: 250 mm/sec
Wire diameter: 0.1–0.3 mm
Max wire spool weight: 6 kg
Machine dimensions: 1970 x 2395 x 2355 mm
Machine weight: 4200 kg
