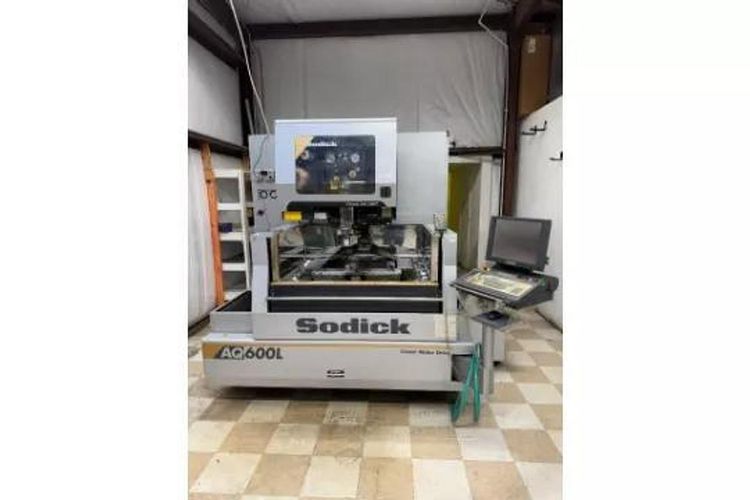

Sodick AQ600L/LN2W

X-Axis Travel: 23.62"
Y-Axis Travel: 15.75"
Z-Axis Travel: 11.81"
U/V Axis Travel: 3.15"–4.73"
Max Workpiece Dimensions (submerged): 31.1" × 21.65" × 9.84"
Max Workpiece Weight (submerged): 1,741 lbs
Work Tank Dimensions (inside): 44.68" × 35.03"
Wire Diameter: 0.006"–0.012"
Taper Angle: ±20°
Wire Speed: 16.53" per sec
Control: LN2W
Linear Motor Drives
AWT
Dielectric System
Chiller
Wire Chopper
Machine Tool Dimensions: 94.48" × 115.35" × 86.02"
Machine Tool Weight: 10,648 lbs
