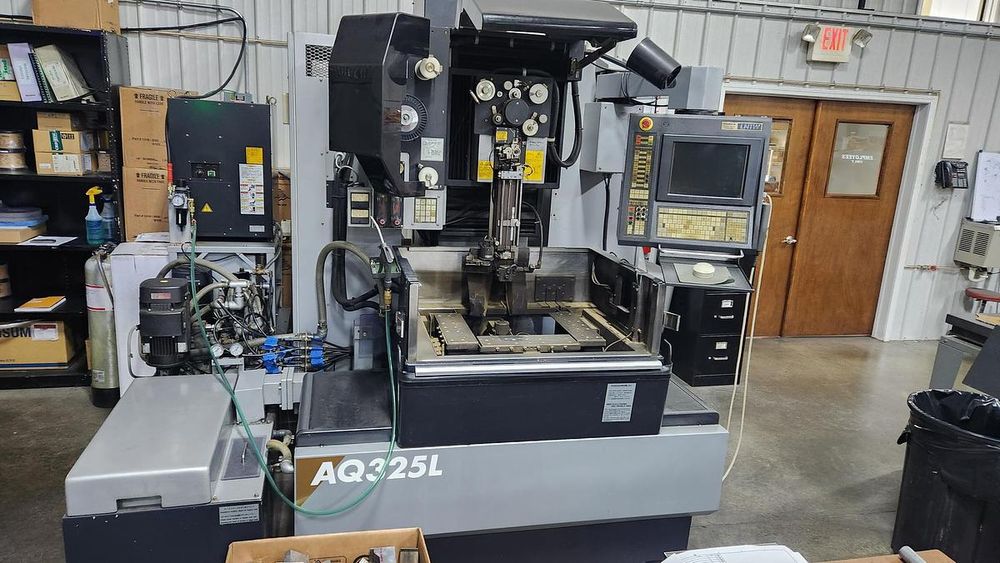

Sodick AQ325L/LN1W

Control: LN1W
X-axis travel: 13.7"
Y-axis travel: 9.8"
Z-axis travel: 8.6"
U-axis travel: 3.1"
V-axis travel: 3.1"
Max workpiece weight: ~990 lbs.
Max workpiece height: 8.6"
Work tank dimensions: 35.2" x 25.5"
Wire diameter: 0.006" - 0.012"
Taper cut: 20° at 3.1" height
Submerged cutting capacity: Yes
Linear motors for X, Y, U, V axes: Yes
Dielectric filtration system: Yes
Chiller unit: Yes
Wire bin: Yes
AWT automatic wire threading: Yes
Machine dimensions: 64.9" x 83.6" x 81.8"
Machine weight: 6,615 lbs.
