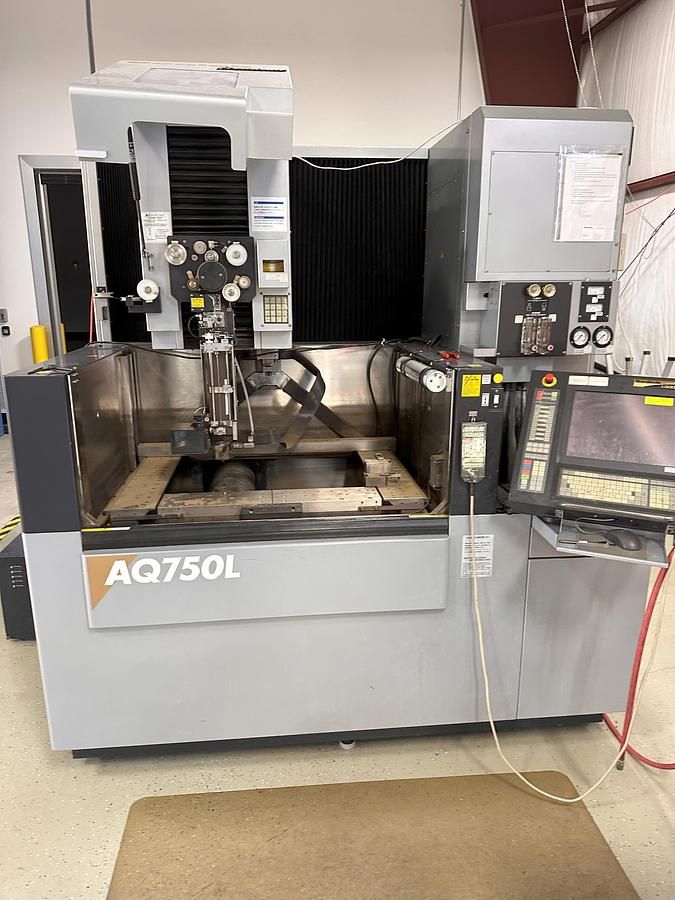

Sodick AQ750L/LQ33W

X-axis travel: 29.53"
Y-axis travel: 19.68"
Z-axis travel: 15.75"
U-V axis travel: 30.31" x 20.47"
Control: LQ33W CNC
Axis drive: Linear motors (X, Y, U, V)
Wire diameter range: 0.006" ~ 0.012"
Work tank dimensions: 49.76" x 38.31"
Max workpiece weight: 3,307 lbs
Floor to table distance: 39.37"
Machine dimensions: 82.7" x 110.25" x 92.52"
Machine weight: 11,684 lbs
Dielectric system: Complete filtration system
Cooling: Chiller
Flushing: Submersible
AWT: Included
Wire chopper: Included
