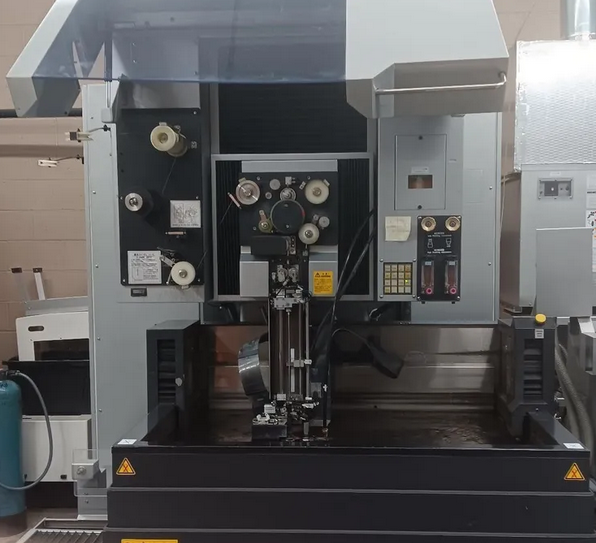

Sodick AG600L

X-axis travel 23.6"
Y-axis travel 15.75"
Z-axis travel 13.78"
U-axis travel 4.73"
V-axis travel 4.73"

Control Sodick LN2W CNC
Auto wire threading
Linear motor drives
Inside tank dimensions 41.34" x 27.59"
Taper angle +/- 25°
Max workpiece weight 2,240 lbs
Wire diameter 0.002 - 0.012"
Wire speed 16.54 in/sec max
Power supply 40 Amps
Dielectric fluid capacity 211 gallons
Dielectric tank external dimensions 28.54" x 100.39"
Spent wire bin 24" x 24" x 40"
3-sided rise & fall worktank
Dielectric system
Chiller
Wire chopper
Absolute linear scale
Remote keypad
Electrics 200/220 Volt 3 Phase
Normal power 10.5 kVA
Max power 13 kVA
Main unit weight approx. 10,950 lbs
Main tool dimensions W 96.46" D 103.15" H 94.09"
Machine installation dimensions 137.80" x 145.67"
