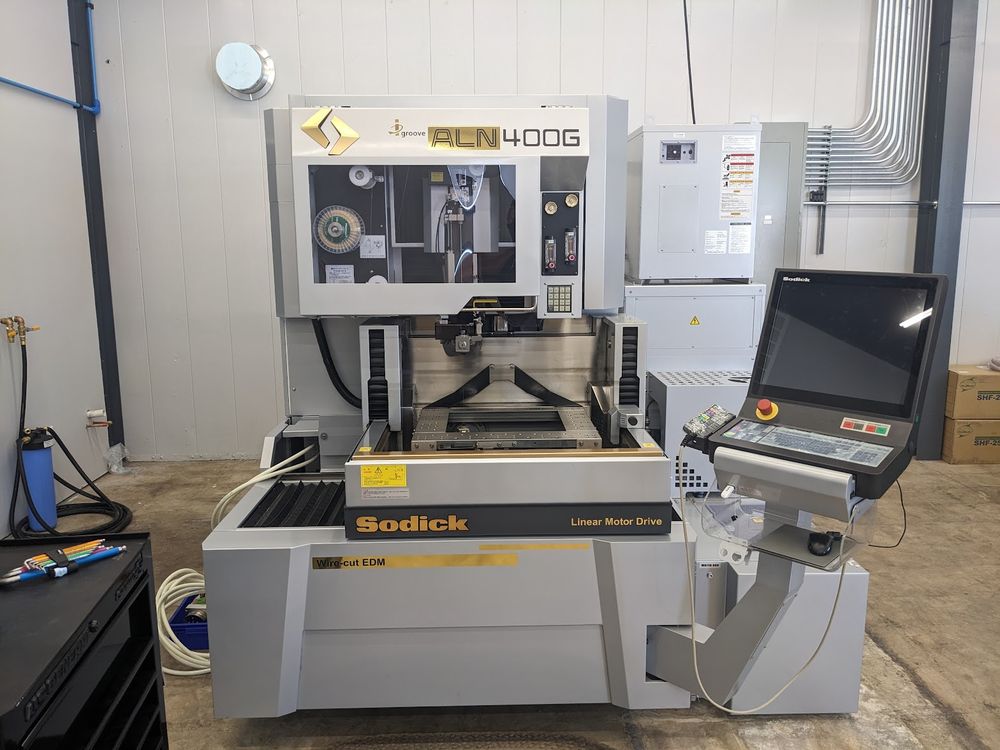

Sodick ALN 400G

Max. workpiece size (flushing) 23.6” x 18.5” x 9.4”
Max. workpiece weight (flushing) 1102 lbs
Max. workpiece size (submerged) 23.6” x 18.5” x 9.0”
Max. workpiece weight (submerged) 771 lbs
X-axis travel 15.75”
Y-axis travel 11.81”
Z-axis travel 9.84”
U-axis travel 5.91”
V-axis travel 5.91”
Max. taper angle +25°
Wire diameter range 0.004”–0.012”
Work tank dimensions 33.45” x 24.01”
Distance floor to table top 39.17”
Wire-feed speed max 16.5”/sec
Wire bobbin weight 22 lbs
External dimensions 87” x 96” x 87”
Machine weight 7500 lbs

Sodick SPWE Smart Control
Sodick WS-4P rotary table
Table interface
Taper Flex NEO
Rigid precision linear motors (X, Y, U, V)
Absolute glass scales (X, Y, U, V)
Thermal displacement compensation
iGroove wire rotation
Automatic wire threader
Remote pendant
Water deionizer
Automatic voltage regulator
LED work light
3-sided rise/fall work tank
4-sided clamping table
Z-axis automatic fluid level control
Cooling unit
