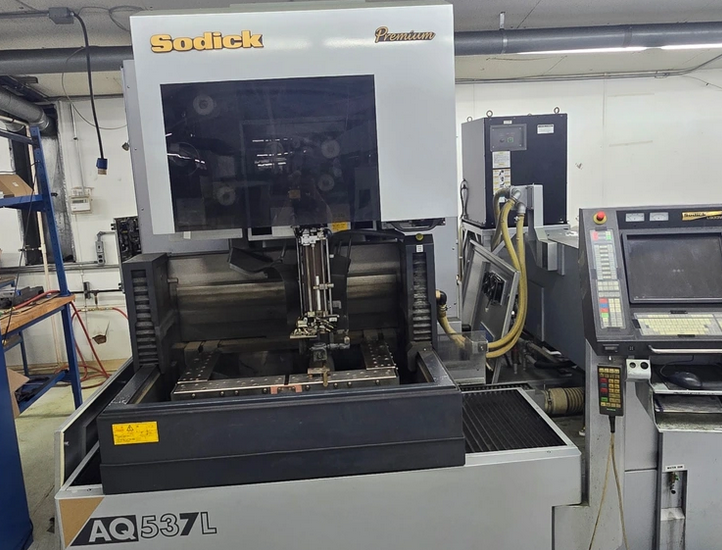

Sodick AQ537L Wire EDM

Axis count: 5
X-axis travel: 22.44 in
Y-axis travel: 14.57 in
Z-axis travel: 13.77 in
U/V-axis travel: 4.72 in
Table size (L): 31.625 in
Table size (W): 19.625 in
Table load capacity: 2200 lb
Taper capacity: 25°
Wire diameter (min): 0.004 in
Wire diameter (max): 0.012 in
Dielectric tank capacity: 211 gal
Automatic wire threading system installed
Submerged machining capability
Linear motor drive technology
Linear scales feedback on X, Y, U, V axes
High-speed electrolysis-free circuit
CNC control: Sodick LQ33W
15.1" TFT LCD control display
Multi-task OS controller architecture
Electric chiller included
Complete dielectric filtration system
Automatic temperature control system
Submersible flushing system
Power requirement: 220 V
Dimensions: 97" x 102" x 95"
Weight: 9900 lb
