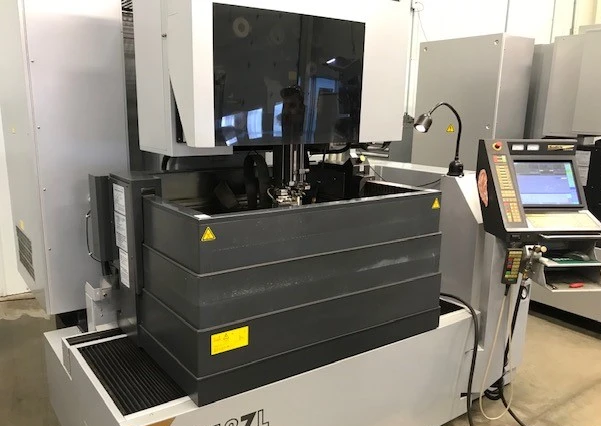

Sodick AQ537L

Table Size L: 31.625 in
Table Size W: 19.625 in
Table Load Capacity: 2200 lb
X Axis Travel: 22.44 in
Y Axis Travel: 14.57 in
Z Axis Travel: 13.77 in
U/V Axis Travel: 4.72 in
Taper Capacity: 25 deg
Dielectric Tank Capacity: 211 gal
Control: LQ33W CNC
Number of Axis: 5
Dimensions: 97" x 102" x 95"
Weight: 9900 lb
Features: Premium Model
Features: High-Speed Electrolysis Free Circuit
Features: FT II Contact Position Detection
Features: Multi Task OS, Sodick Motion Controller
Features: 15.1" TFT LCD Screen
Features: Standard 101-Type Keyboard
Features: Linear Motor Technology
Features: Linear Scales on X, Y, U, V axis
Features: Electric Chiller
Features: Complete Dielectric Filtration System
Features: Automatic Temperature Control
Features: Submersible Flushing
Features: Automatic Wire Threading
Machining Hours: 26,986
