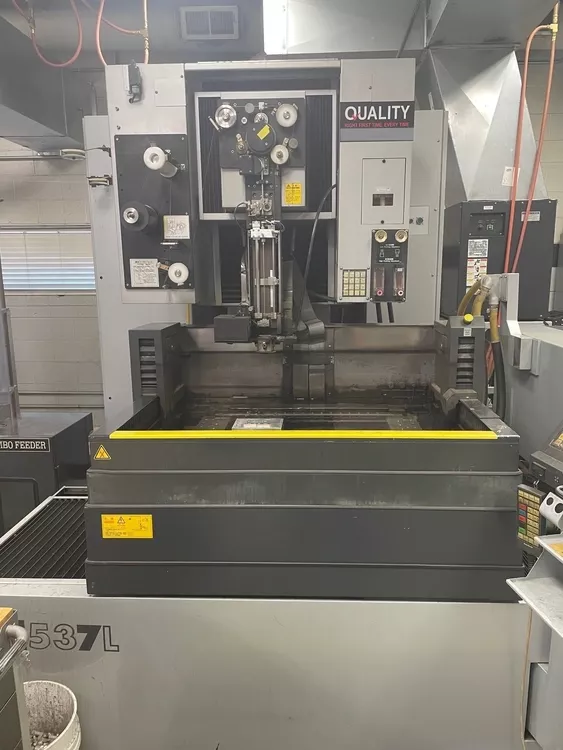

Sodick AQ537L

SODICK AQ537L
Year: 2006

Control CNC LQ33W
Number of axes 5
X-axis travel 570 mm
Y-axis travel 370 mm
Z-axis travel 350 mm
U/V-axis travel 120 mm
Taper capacity 25°
Wire diameter min 0.10 mm
Wire diameter max 0.30 mm
Table load capacity 998 kg
Dielectric tank capacity 799 liters
Submerged cutting Yes
Auto wire threading Yes
Chiller included Yes
Power requirement 220360 VA
Transformer included No
Shipping brackets included Yes
Machine dimensions 2464 x 2565 x 2388 mm
Machine weight 4490 kg

Large wire spool feeder
Linear motors on X, Y, U, V
Three-sided automatic tank door
Vertical sliding tank door
