Sodick AG400L

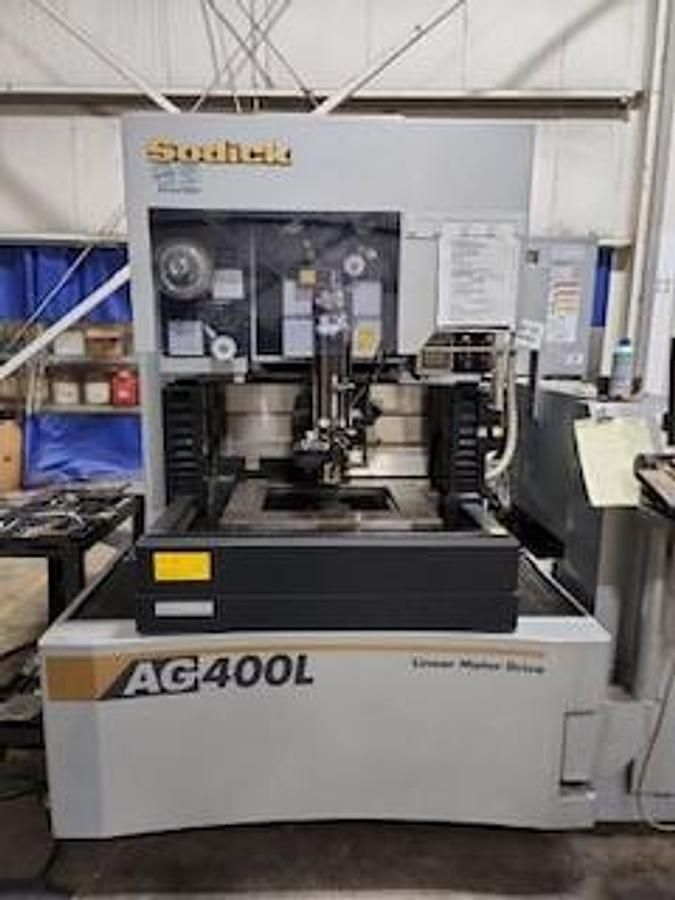

SODICK AG400L
Year: 2012

CNC control: LN2W/LPW400
Program input: keyboard, USB, Ethernet
Linear motor design (no ball screws)
Glass scales
Fixed jet auto wire threader
X-axis travel: 15.75″
Y-axis travel: 11.81″
Z-axis travel: 9.87″
U and V travel: ±4.73″
Max workpiece size: 24″ x 18″ x 9″
Max workpiece weight: 1,102 lbs
Tank dimensions: 33.460″ x 24.020″
Wire diameter range: 0.002″ to 0.12″
Max wire speed: 420 mm/sec
Dielectric fluid capacity: 600 liters
Chiller included
Machine dimensions: 86.68″ x 87.99″ x 86.61″
Approximate weight: 8,377 lbs
Power: 200V / 3 Phase / 50–60 Hz
Power consumption: 13 kVA / FLA 38 amps
Separate transformer for multiple voltage options
Deinstalled and prepared for shipment by Sodick
