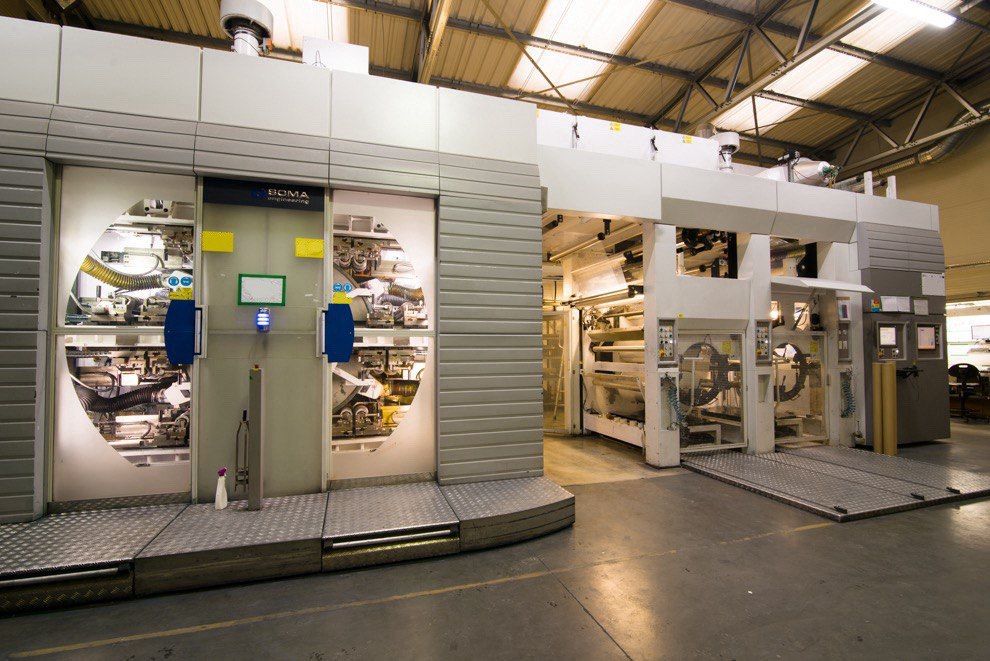

Soma Flex Midi 1270-8 / GEARLESS 8 1270 mm

MATERIAL:
· LDPE 0.020 – 0.160 mm
· PE / OPP 0.012 – 0.100 mm
· CPP 0.020 – 0.050 mm
· BOPP, PET, OPA 0.010 – 0.025 mm
· Paper 25 – 120 g/m2
· Laminate 0.02 – 0.12 mm

BASIC TECHNICAL PARAMETERS:
Max printing width: 1270 mm
Max material width: 1320 mm
Min material width: 500 mm
Min printing repeat: 360 mm
Max printing repeat: 800 mm

Anilox cylinder inner diam. 136,989 mm
perimeter 500 mm
sleeve length 1350 mm
Max. mechanical speed 300 m/min

Working printing speed depends on kind and quality of printed material, printing inks, ink transfer, printing repeat length, printing plates
Kind of printed motive: cross lines – screen density, anilox rollers volume, dot gain, lacquer, surrounding temperature and type of doctor blade chambers.

Tension in printed web:
NON STOP 40 ÷ 360 N
without automatic exchange. 10 ÷ 360 N
Side of operating staff. on the left from longitudinal axis from unwinding to CI drum

Unwind / Rewind roll parameters:
max. roll diam. 800 mm
inner core diam.(paper ) 76 mm
outer core diam. (paper). 105 mm
max. roll weight. 750 kg
Min. roll diameter at NONSTOP unwinding. 500 mm
Max. speed at roll exchange at NONSTOP
unwinding 100 m.min-1 (2)
Dimensions (w x l x h). 7130 x 12400 x 4870 mm
Weight ca 40 000 kg
